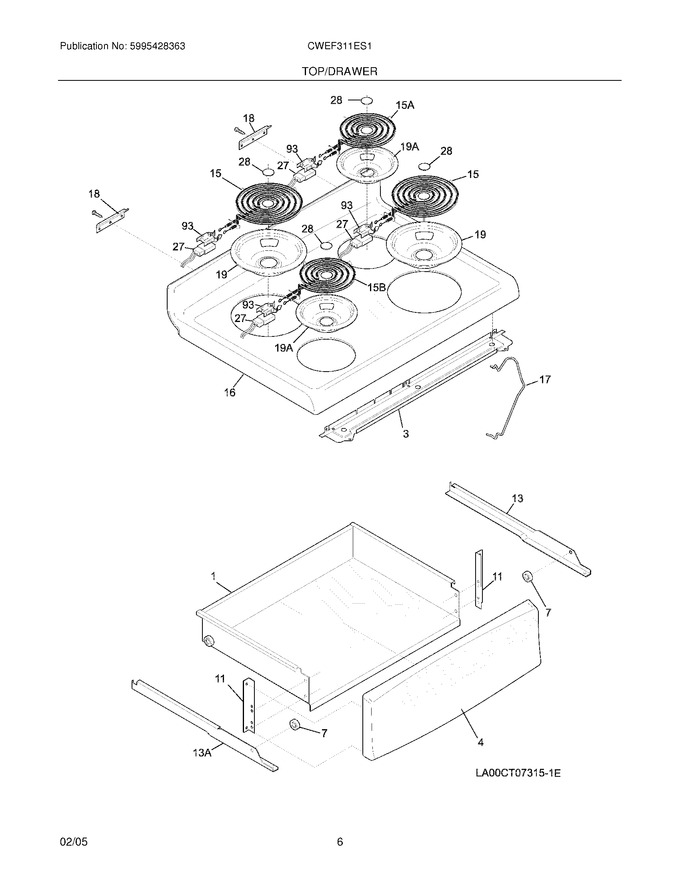

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107104)			Immediately	$ 143.39
3	318144322		Support Main Top		Appelez-nous	-
4	318044301		Panel,drawer ,white ,front		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket,drawer Support ,(2)				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318065781		Panel,main Top ,white				$ 181.55
17	318119100		Rod-maintop Support,(2)				$ 6.67
18	318074410		Hinge,main Top Panel ,(2)				$ 1.47
28	5303301461		Medallion, Surface Element		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
F15	316442303		Element,surface ,large/8 Inch ,2400w ,medallion Incl   (Replaces: 5304437242)			Immediately	$ 207.45
F15A	316439802		Element,surface ,small/6 Inch ,1250w ,medallion Incl   (Replaces: 5304437241)			Immediately	$ 192.78
F15B	318372211		Element,surface ,6`` ,small   (Replaces: 08067762)			Immediately	$ 45.14
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223427		Terminal Block,surface Element ,18`` ,white Leads				$ 12.60
F27	318223401		Terminal Block,surface Element ,27`` ,black Leads				$ 31.13
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303325978		Screw,shoulder Head ,8-18 X 1/2		Appelez-nous	-
