SELECT A DIAGRAM

01 - Cover Sheet


02 - Washer/dryer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


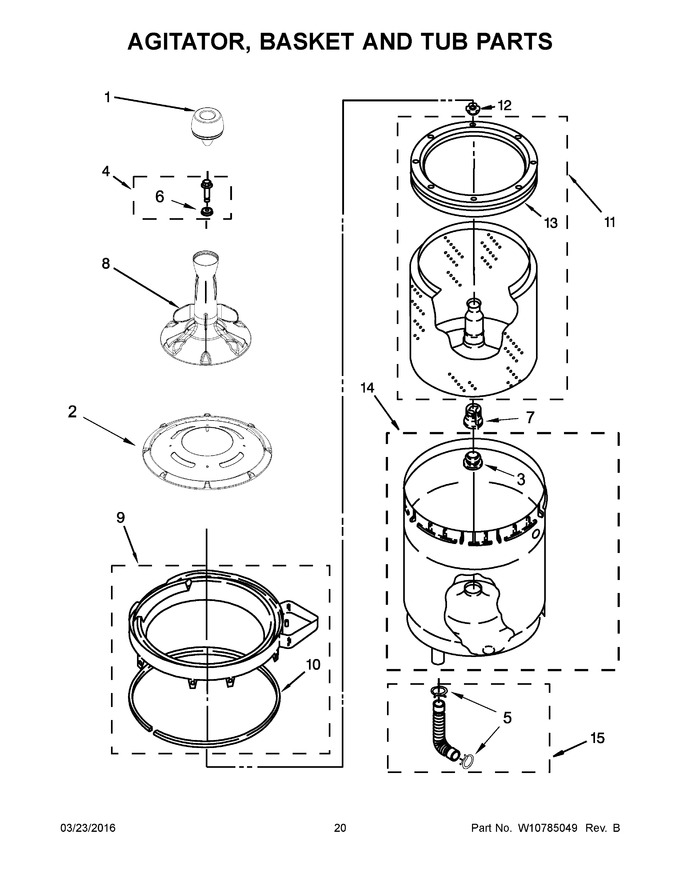

11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts


14 - Water System Parts


15 - 3402855 Burner Assembly


16 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10793634		Dispenser Assembly   (Replaces: W10777969)			Immediately	$ 69.06
2	W11085570		Base Shield   (Replaces: W10723583)				$ 34.78
3	W10814296		Gasket, Centerpost   (Replaces: 383727)			Immediately	$ 8.26
4	WP358237		Screw And Washer   (Replaces: 358237)			Immediately	$ 7.97
5	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.03
6	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
7	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 24.74
8	W10881748		Agitator   (Replaces: W10680209)			Immediately	$ 158.88
9	W10880720		Splash Shield Assembly   (Replaces: W10445870)			Immediately	$ 200.01
10	WP3976308		Seal, Tub Ring   (Replaces: 3976308)			Immediately	$ 25.43
11	3352234		Basket				$ 349.95
12	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
13	WP387240		Ring, Balance   (Replaces: 387240)			Immediately	$ 163.85
14	WP3349292		Tub   (Replaces: 3349292)			Immediately	$ 279.30
15	285871		Hose, Tub To Pump (includes Clamp)   (Replaces: 3951449)			Immediately	$ 24.01

    View Diagram in Separate Window       Print Part List
