| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
3402855 |
|

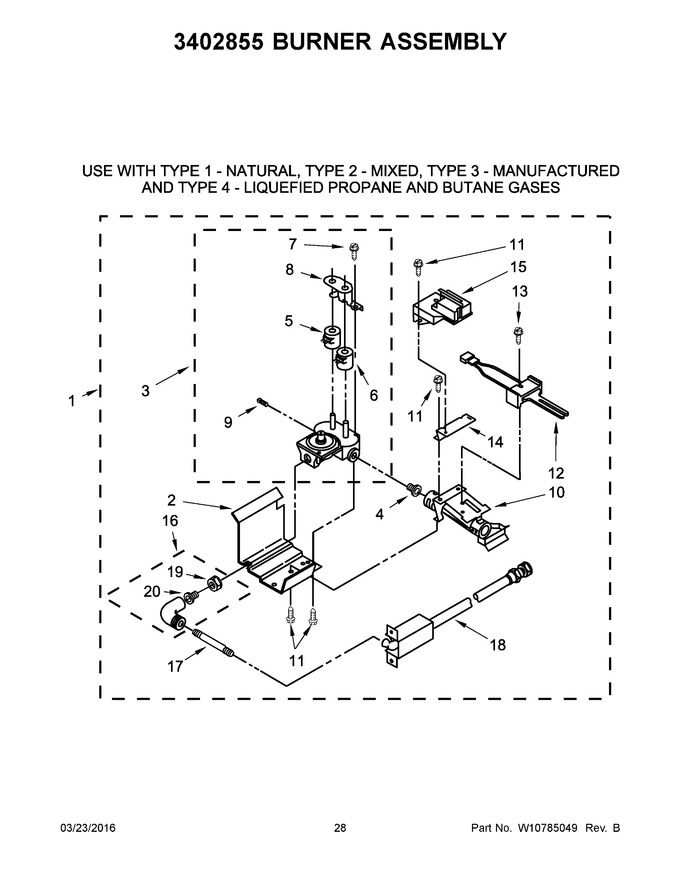

Burner Assembly (complete)(60 Hz.) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3391699 |
|
Base, Burner |
|
Appelez-nous
|
- |
|
|
|
| 3 |
279889 |
 |
Valve, Gas (60 Hz.) (Replaces: 8281909) |
|
|
|
$ 200.94 |
|
|
| 4 |
3394360 |
|
Orifice, Burner (natural Gas) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
279834 |
 |
Coil, 60 Hz (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
|
Immediately |
$ 29.57 |
|
|
| 6 |
279834 |
|
Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
|
Immediately |
$ 29.57 |
|
|
| 7 |
694421 |
|
Screw, Coil |
|
Appelez-nous
|
- |
|
|
|
| 8 |
694538 |
|
Bracket, Coil |
|
|
|
$ 72.05 |
|
|
| 9 |
W10295523 |
|
Plug, Pipe (Replaces: 239822) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
8578392 |
|
Burner |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP693995 |
 |
Screw (Replaces: 3387057) |
|
|
Immediately |
$ 6.47 |
|
|
| 12 |
279311 |
 |
Ignitor (Replaces: 686590) |
|
|
Immediately |
$ 71.01 |
|
|
| 13 |
WPW10366705 |
|
Screw (Replaces: 3393909) |
|
|
|
$ 6.75 |
|
|
| 14 |
697409 |
|
Bracket, Sensor |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WP338906 |
 |
Sensor, Radiant (Replaces: 338906) |
|
|
Immediately |
$ 46.72 |
|
|
| 16 |
3406051 |
 |
Elbow Union Assembly |
|
|
|
$ 90.15 |
|
|
| 17 |
W10110398 |
|
Pipe, Supply |
|
Appelez-nous
|
- |
|
|
|
| 18 |
3391118 |
|
Supply Line (gas) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
233076 |
|
Nut, Compression |
|
|
|
$ 43.19 |
|
|
| 20 |
3393767 |
|
Pipe, Tail |
|
|
|
$ 123.97 |
|
|
| 4A |
15422 |
|
Orifice, Burner (type 4 (butane)) |
|
|
|
$ 3,097.28 |
|
|
| NI |
3392235A |
 |
Conversion Kit (type 1 And 2 To Type 4) L.p.g. (Replaces: 3392235) |
|
|
Immediately |
$ 70.11 |
|
|
| NI |
N/P |
|
Following Parts Not Illustrated |
|
Appelez-nous
|
- |
|
|
|
