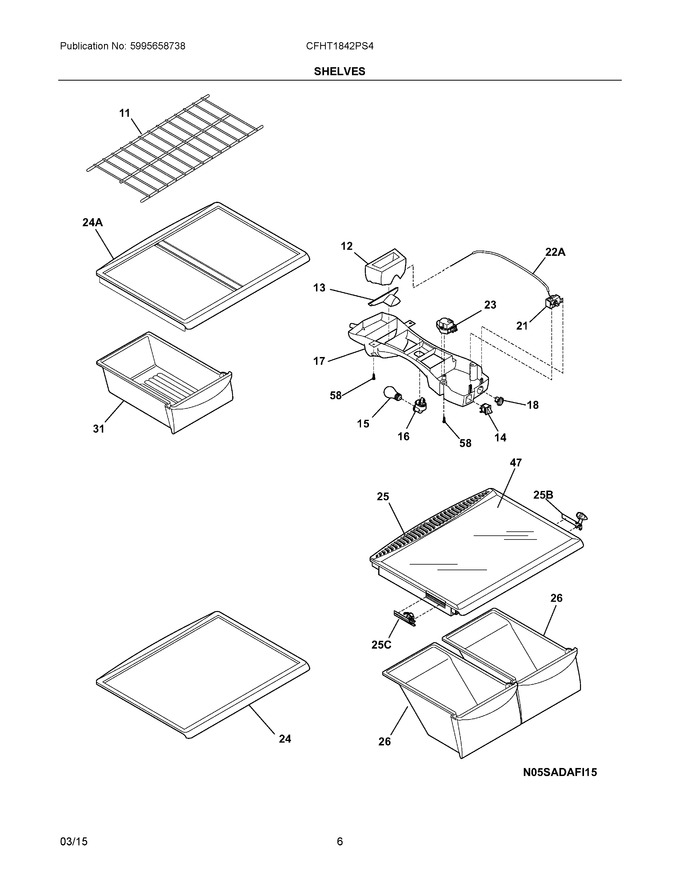

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
12	241542001		Diffuser, Air, Top			Immediately	$ 74.42
13	240362601		Diffuser, Air, Bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	240352703		Control Box				$ 53.72
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control, Temperature   (Replaces: 5304421256)			Immediately	$ 72.31
23	215846604		Timer-defrost   (Replaces: 241809401)			Immediately	$ 24.58
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 129.17
25	240364787		Cover-crisper Pan			Immediately	$ 120.98
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 135.77
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
58	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White   (Replaces: 240468201)				$ 9.10
24A	240358926		Shelf-"spill-safe", Sliding, W/pan Hanger			Immediately	$ 129.17
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NI	242146287		Label, Energy Guide		Appelez-nous	-
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
NIA	241705801		Spacer-shelf				$ 7.09
NIA	240568606		Seal   (Replaces: 240568607)				$ 12.76
NIB	5304535377		Tape, Aluminum, 3" Wide   (Replaces: 240570304)				$ 31.36
NIC	240388701		Wiring Harness, Control Box			Immediately	$ 80.09
