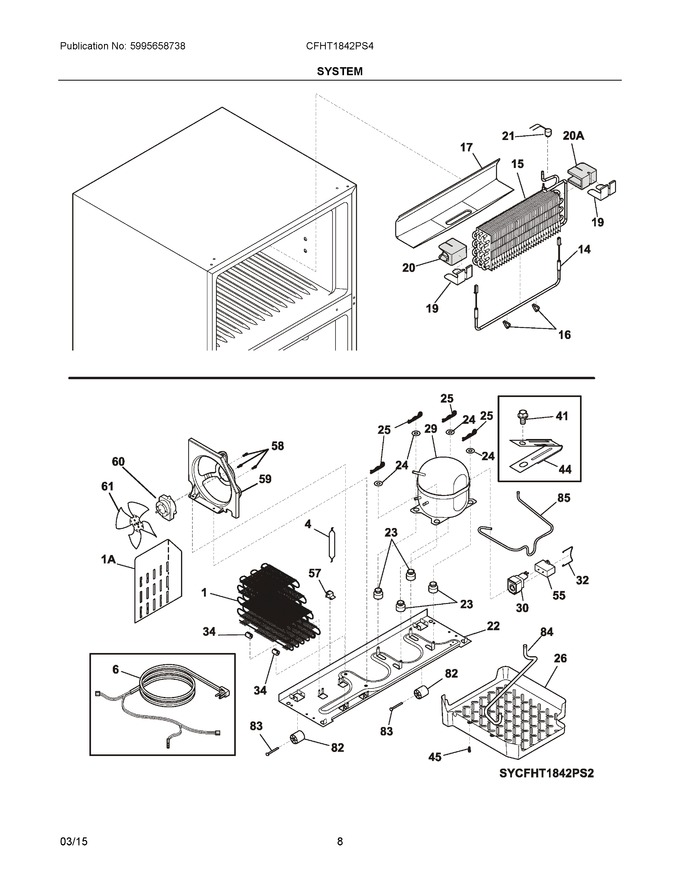

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241785404 | Condenser (Replaces: 241873404) |
|
$ 169.39 | |||||
| 4 | 5303305677 | Dryer-filter, W/process Tube (Replaces: 242190201) |
|
Immediately | $ 31.67 | ||||
| 6 | 5304521786 | Harness-wiring, Machine Compt (Replaces: 242019701) |
|
$ 126.65 | |||||
| 14 | 242044008 | Heater-defrost |
|
Immediately | $ 33.00 | ||||
| 15 | 5303918492 | Evaporator Kit |
|
$ 178.84 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241801301 | Trough-drain |
|
$ 64.46 | |||||
| 19 | 242320401 | Shield, Heat, Evap Block |
|
$ 67.49 | |||||
| 20 | 5304527429 | Block, Evaporator, Rh (Replaces: 242238401) |
|
$ 11.22 | |||||
| 21 | 5303918634 | Thermostat Kit, Defrost, W/connector |
|
Immediately | $ 40.31 | ||||
| 22 | 241665606 | Base-compressor, W/rollers |
|
$ 194.14 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037701 | Clip-compressor Mtg |
|
$ 2.84 | |||||
| 26 | 241920605 | Pan-defrost |
|
$ 53.76 | |||||
| 29 | 240550946 | Compressor, W/o Electricals (Replaces: 240550937) |
|
Immediately | $ 396.66 | ||||
| 30 | 241941005 | Starter |
|
$ 114.84 | |||||
| 32 | 297030500 | Clamp, Elec Cont Mtg, Compressor |
|
Immediately | $ 12.05 | ||||
| 34 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 44 | 5304456288 | Clamp-wiring Harness, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 28.77 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240555002 | Screw, Hex Washer Head, 8-32 X 0.375 (Replaces: 218897004) |
|
Immediately | $ 13.46 | ||||
| 59 | 5303918774 | Shroud, Cond Fan Motor (Replaces: 241935602) |
|
Immediately | $ 186.30 | ||||
| 60 | 242018404 | Motor-condenser Fan |
|
$ 183.81 | |||||
| 61 | 240524102 | Fan Blade, Condenser Fan |
|
Immediately | $ 39.43 | ||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 240500801 | Tube-drain, Rubber, Lower |
|
$ 65.21 | |||||
| 85 | 241871503 | Tube-connector, Suction |
|
$ 49.29 | |||||
| 1A | 242213901 | Deflector, Air |
|
$ 19.72 | |||||
| 20A | 5304527430 | Block, Evaporator, Lh (Replaces: 242238301) |
|
$ 11.48 | |||||
| NI | 5303918263 | Heat Exchanger Kit, Suction Line |
|
$ 461.16 | |||||
| NI | 5303918222 | Hot Tube Repair Kit, Service |
|
$ 418.12 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NI | 218515401 | Clip-grille |
|
$ 17.72 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 29.77 | |||||
| NIA | 240388701 | Wiring Harness, Control Box |
|
Immediately | $ 80.09 | ||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NIB | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 |
