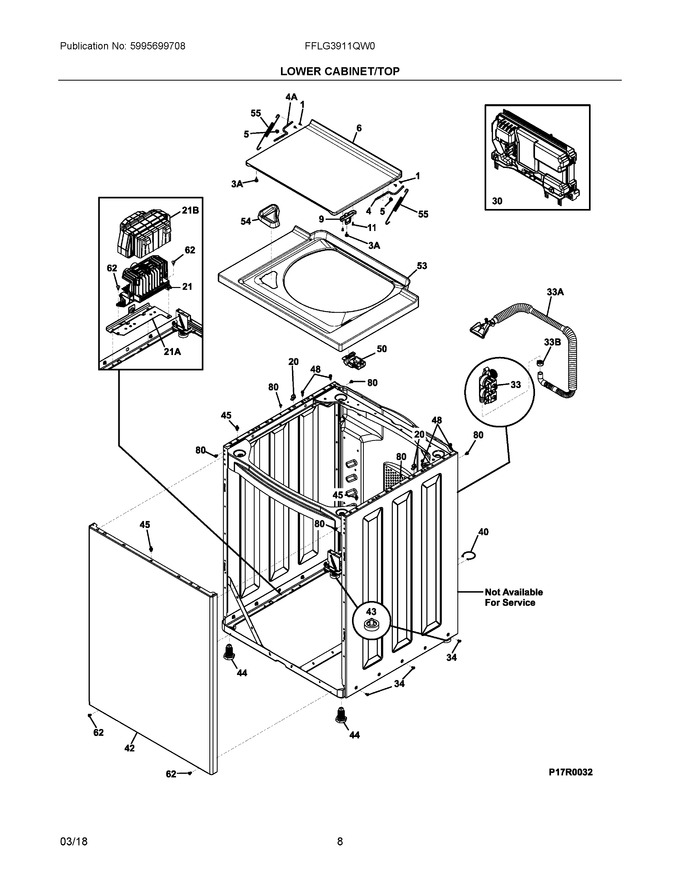

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw, Pan Hd Phillips, 6-32 X 0.337, Dog Point |
|
$ 10.85 | |||||
| 4 | 137469900 | Hinge Bar, Rh, Lc |
|
$ 43.24 | |||||
| 5 | 5304488483 | Grommet, Hinge, Acetal |
|
- | |||||
| 6 | 5303212872 | Lid, Washer, White |
|
Immediately | $ 345.16 | ||||
| 9 | 137513712 | Striker, Lid, White (Replaces: 137513710) |
|
Immediately | $ 13.01 | ||||
| 11 | 3204368 | Screw, Lid Strike Mtg, 6-20b X 0.375 |
|
$ 13.01 | |||||
| 20 | 3204374 | Pin, Slide, Side To Top |
|
$ 78.67 | |||||
| 21 | 808653801 | Board, Motor Control, Washer |
|
Immediately | $ 254.47 | ||||
| 30 | 5304500489 | Board, Main Control, Washer, W/housing |
|
$ 149.36 | |||||
| 33 | 137353500 | Valve-2 Coil, 120v, Water |
|
Immediately | $ 108.20 | ||||
| 34 | 131205500 | Screw, Cab Body, 1/4-14 X 0.625, Side-to-base |
|
$ 13.46 | |||||
| 40 | 5303309503 | Clip, Drain Hose, Back Sheet |
|
$ 7.09 | |||||
| 42 | 5304501141 | Panel, Front, Svc Kit |
|
$ 320.12 | |||||
| 43 | 131422200 | Pad, Self Lvlg Leg, Rear |
|
Immediately | $ 56.70 | ||||
| 44 | 134548800 | Leveling Leg, Screw, Plastic |
|
Immediately | $ 30.20 | ||||
| 45 | 131346401 | Pin, Panel Locator, Front |
|
Immediately | $ 16.63 | ||||
| 48 | 137329800 | Screw 12-24 Unc X .75 Hex, Washer |
|
- | |||||
| 50 | 137353302 | Lock, Lid W/o Switch |
|
Immediately | $ 93.62 | ||||
| 53 | 137190810 | Panel, Washer Top Lc, White |
|
$ 245.32 | |||||
| 54 | 5304488476 | Dispenser, Bleach, Lc |
|
$ 35.44 | |||||
| 55 | 134890500 | Spring, Lid Assist |
|
$ 19.85 | |||||
| 62 | 131302800 | Screw, 10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 21A | 809161501 | Bracket, Uimc |
|
$ 29.06 | |||||
| 21B | 5304500440 | Cover, Uimc |
|
$ 63.79 | |||||
| 33A | 5304533220 | Hose, Fill (Replaces: 809191901) |
|
Immediately | $ 30.25 | ||||
| 33B | 5304488479 | Clamp |
|
Immediately | $ 32.09 | ||||
| 3A | 134075500 | Bumper, Lid, Front |
|
$ 17.35 | |||||
| 4A | 137470900 | Hinge Bar, Lh, Lc |
|
$ 43.24 | |||||
| NI | 131362400 | Fastener, Push-in |
|
$ 9.41 | |||||
| NI | 137360821 | Protector, Edge |
|
$ 12.05 | |||||
| NIA | 5304500439 | Base, Main Control, Washer |
|
$ 121.46 | |||||
| NIA | 134178901 | Screw, 8-18ab X 0.455 |
|
$ 14.89 | |||||
| NIA | 808702601 | Plug, Uimc |
|
- | |||||
| NIB | 5304500476 | Harness, Uimc Pele |
|
$ 75.84 |
