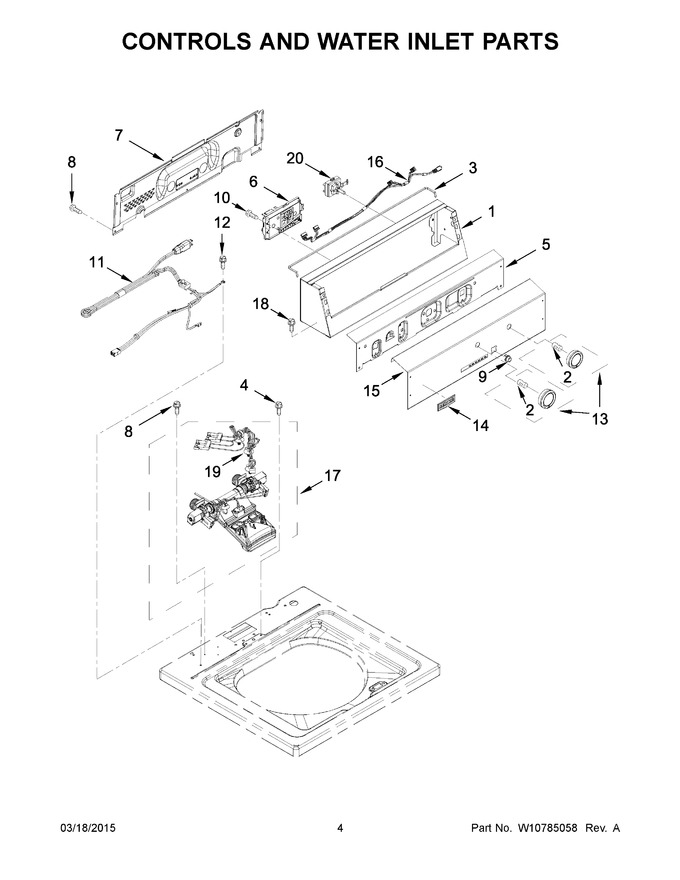

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124005 | Console (Replaces: W10461095) |
|
$ 238.42 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 39.71 | |||||
| 4 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 5 | W10461066 | Bracket, Back |
|
- | |||||
| 6 | WPW10719321 | Control Unit Assembly, Machine And Motor (Replaces: W10719321) |
|
Immediately | $ 457.79 | ||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | W10755537 | Push Button, Start |
|
$ 52.85 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10482500 | Cord, Power |
|
$ 138.43 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W10738283 | Assembly, Control Knob (grey) |
|
$ 53.40 | |||||
| 14 | WPW10612926 | Badge (grey) (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 15 | W10763073 | Facia |
|
$ 440.96 | |||||
| 16 | W10291184 | Harness, Upper E-star |
|
$ 164.12 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10683603) |
|
Immediately | $ 94.00 | ||||
| 18 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 19 | W10876654 | Harness, Valve (Replaces: W10684972) |
|
$ 194.92 | |||||
| 20 | W10701088 | Switch, Rotary Encoder (5 Position) |
|
$ 67.82 |
