SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

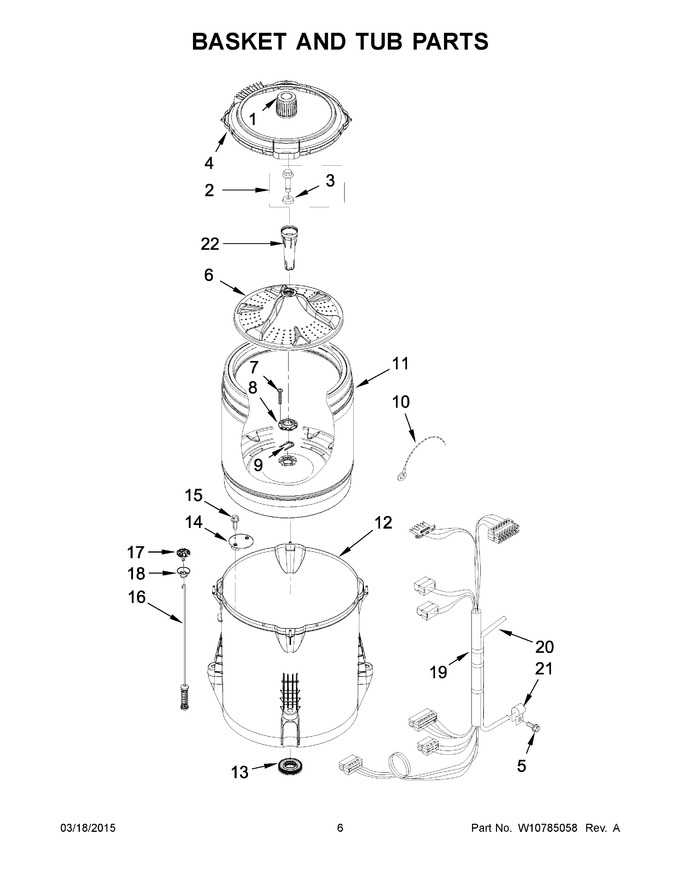

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850126		Dispenser, Fabric Softener   (Replaces: W10777971)				$ 80.91
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 7.59
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.63
4	WPW10556325		Tub Ring   (Replaces: W10556325)			Immediately	$ 204.15
5	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
6	W10846191		Impeller (washplate)   (Replaces: W10680217)			Immediately	$ 298.31
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10528947		Hub - Driven, Basket   (Replaces: W10396887)			Immediately	$ 44.62
9	W11385424		Retainer, Drive Block   (Replaces: W10402178)			Immediately	$ 12.97
10	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
11	W10521298		Basket Assembly				$ 486.01
12	W10324648		Tub   (Replaces: W10238301)				$ 361.85
13	W10579816		Seal, Tub   (Replaces: W10424291)				$ 93.69
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
15	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
16	W10780044		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10748954)			Immediately	$ 158.81
17	W10583768		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
18	W10256551		Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls)		Appelez-nous	-
19	W10858334		Harness, Lower   (Replaces: W10610081)				$ 223.74
20	WP353244		Hose, Pressure Switch   (Replaces: W10236981)			Immediately	$ 86.67
21	W10005430		Clamp, Cable			Immediately	$ 9.53
22	W10836496		Barrel, Agitator   (Replaces: W10680218)			Immediately	$ 171.72

    View Diagram in Separate Window       Print Part List
