01 - Cover Sheet

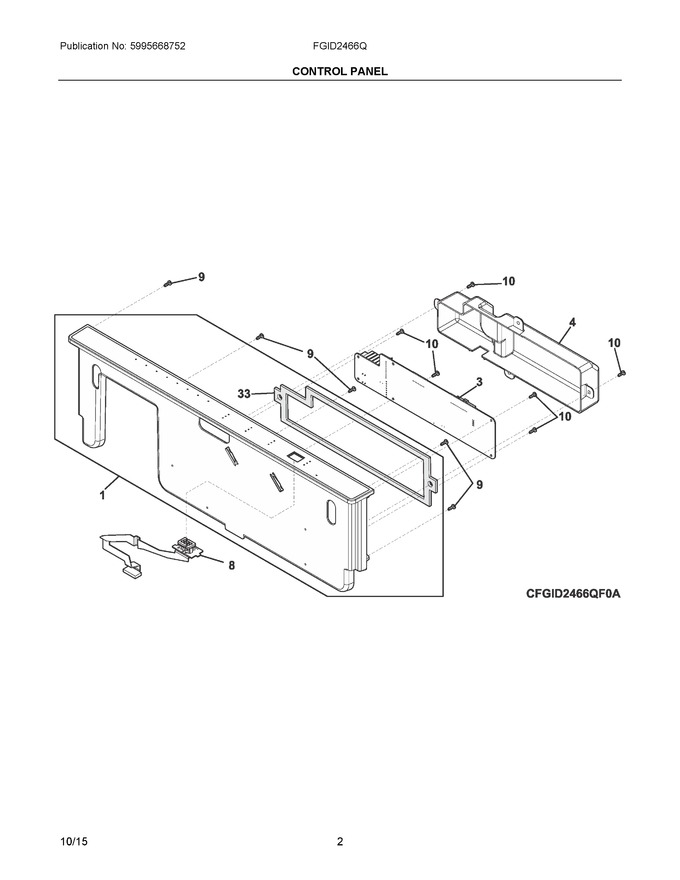

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304496526 | Console Assembly, W/overlay, Black, & Cover Gasket |
|
Immediately | $ 441.69 | ||||
| 3 | 5304514670 | Board, Control (Replaces: 5304500203) |
|
Immediately | $ 184.15 | ||||
| 4 | 5304517614 | Cover, Control (Replaces: 808950401) |
|
$ 20.24 | |||||
| 8 | 807144701 | Display Assembly |
|
$ 82.22 | |||||
| 9 | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| 10 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 61.66 | |||||
| NI | 154870101 | Harness, Wiring, Main |
|
Immediately | $ 138.20 | ||||
| NI | 808612219 | Energy Guide |
|
- |
