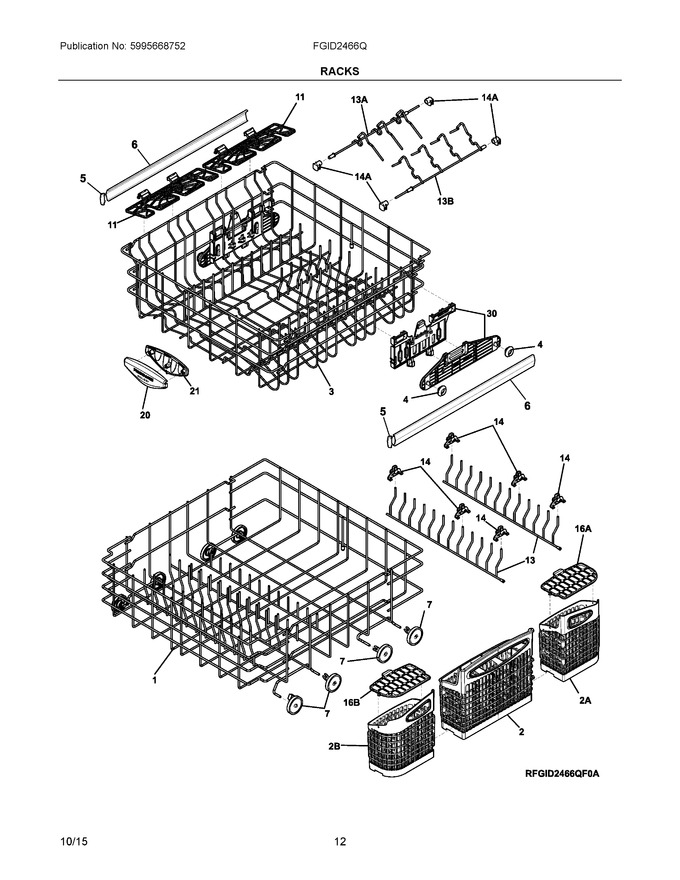

07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140222632022 | Rack Assembly, Lower, Silver (Replaces: 808602402) |
|
Immediately | $ 134.18 | ||||
| 2 | 5304535382 | Basket, Silverware, Grey, Main (Replaces: 154424002) |
|
Immediately | $ 25.43 | ||||
| 3 | 5304535250 | Rack Assembly, Upper (Replaces: 5304498205) |
|
$ 130.42 | |||||
| 4 | 154522902 | Wheel Assy., Upper Rack, (4) (Replaces: 154494502) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap, Slide, Grey, (4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf, Cup, Half Width, Gray (Replaces: 154793904) |
|
$ 7.42 | |||||
| 13 | 140054938026 | Fence, Fold Down, Silver, Lower Rack, (2), Full Length (Replaces: 154721404) |
|
Immediately | $ 14.70 | ||||
| 14 | 154428402 | Bracket, Fold Down Fence, Grey, Lower Rack, (6) |
|
Immediately | $ 25.05 | ||||
| 20 | 5304506509 | Handle, Pull, Front, Upper Rack (Replaces: 154732602) |
|
$ 13.74 | |||||
| 21 | 5304504913 | Handle, Pull, Grey, Rear, Upper Rack (Replaces: 154530902) |
|
$ 13.74 | |||||
| 30 | 5304532268 | Rack Adjustment, Assembly, Rh, W/rollers (Replaces: 5304498135) |
|
$ 26.85 | |||||
| 13A | 154740304 | Fence, Multi, 3 Wire, Lh, Grey, Upper Rack |
|
Immediately | $ 32.61 | ||||
| 13B | 5304532950 | Fence, Multi, 4 Wire, Rh, Grey, Upper Rack (Replaces: 154740404) |
|
Immediately | $ 19.76 | ||||
| 14A | 5304506508 | Bracket, Multi Fence, Grey, Upper Rack, (4) (Replaces: 154242003) |
|
Immediately | $ 5.79 | ||||
| 16A | 5304535382 | Lid, Back Basket (Replaces: 154748101) |
|
Immediately | $ 25.43 | ||||
| 16B | 5304535382 | Lid, Front Basket (Replaces: 154748001) |
|
Immediately | $ 25.43 | ||||
| 2A | 5304535382 | Basket, Silverware, Grey, Back (Replaces: 154747801) |
|
Immediately | $ 25.43 | ||||
| 2B | 5304535382 | Basket, Silverware, Grey, Front (Replaces: 154747901) |
|
Immediately | $ 25.43 | ||||
| NIA | 5304532269 | Rack Adjustment, Assembly, Lh, W/rollers (Replaces: 5304498134) |
|
$ 26.85 |
