SELECT A DIAGRAM
01 - Main Top
02 - Burner

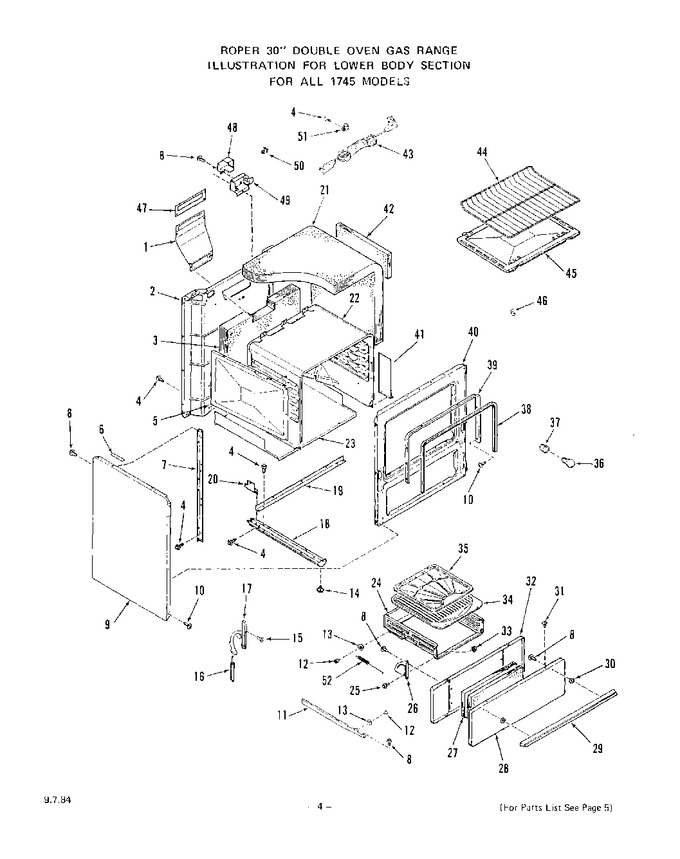

03 - Lower Body
04 - Door
05 - Pedestal
06 - Blower , Blower
07 - Control Panel
08 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327079 | Flue Deflector |
|
- | |||||
| 2 | 327366 | Main Back |
|
- | |||||
| 3 | 328142 | Insulation-oven Back |
|
- | |||||
| 4 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 5 | 327096 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 6 | 326914 | Spacer (lt. Or Rt.) |
|
- | |||||
| 7 | 327035 | Support-body Side (lt. Or Rt.) |
|
- | |||||
| 8 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 9 | 326102 | Body Side (lt. Or Rt.) (black) |
|
- | |||||
| 9 | 326055 | Body Side (lt. Or Rt.) (white) |
|
- | |||||
| 9 | 326058 | Body Side (lt. Or Rt.) (golden Wheat) |
|
- | |||||
| 9 | 326059 | Body Side (lt. Or Rt.) (almond) |
|
- | |||||
| 9 | 327939 | Body Side (lt. Or Rt.) (platinum) |
|
- | |||||
| 9 | 327940 | Body Side (lt. Or Rt.) (toast) |
|
- | |||||
| 10 | 326974 | Screw 10abx1/2`` |
|
- | |||||
| 11 | WP691371 | Broiler Drawer Guide (inc`s. Keys 12, 13) (left) (Replaces: 296326) |
|
Immediately | $ 64.81 | ||||
| 11 | 296327 | Broiler Drawer Guide (inc`s. Keys 12, 13) (right) |
|
- | |||||
| 12 | 70275 | Shoulder Rivet |
|
- | |||||
| 13 | 69006 | Roller |
|
- | |||||
| 14 | 326125 | Leg Leveler (4 Req) |
|
- | |||||
| 15 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 16 | 326962 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 17 | 326012 | Hinge-oven Door (right) |
|
- | |||||
| 17 | 326013 | Hinge-oven Door (left) |
|
- | |||||
| 18 | 327020 | Base W/leg Levelers (lt. Or Rt.) |
|
- | |||||
| 19 | 327026 | Strap-main Back & Base |
|
- | |||||
| 20 | 327022 | Bracket-support & Base (left) |
|
- | |||||
| 20 | 327024 | Bracket-support & Base (right) |
|
- | |||||
| 21 | 326040 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 22 | 324957 | Oven Body |
|
- | |||||
| 23 | 327053 | Bottom-main |
|
- | |||||
| 24 | 328041 | Broiler Drawer (inc`s. 12, 13) |
|
- | |||||
| 25 | 329271 | Shoulder Rivet |
|
- | |||||
| 26 | 327483 | Hinge-broiler Drawer (left) |
|
- | |||||
| 26 | 327482 | Hinge-broiler Drawer (right) |
|
- | |||||
| 27 | W10820036 | Insulation-broiler Door (2 Req.) (Replaces: 296141) |
|
Immediately | $ 27.45 | ||||
| 28 | 326291 | Front Panel-broiler Door (almond) |
|
- | |||||
| 28 | 326292 | Front Panel-broiler Door (black) |
|
- | |||||
| 28 | 327942 | Front Panel-broiler Door (toast) |
|
- | |||||
| 28 | 327941 | Front Panel-broiler Door (platinum) |
|
- | |||||
| 28 | 326287 | Front Panel-broiler Door (white) |
|
- | |||||
| 28 | 326290 | Front Panel-broiler Door (golden Wheat) |
|
- | |||||
| 29 | 286357 | Handle |
|
- | |||||
| 30 | 302343 | Spacer-handle |
|
- | |||||
| 31 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 32 | 327060 | Lining-broiler Door |
|
- | |||||
| 33 | 74056 | Keps Nut 10-24 |
|
- | |||||
| 34 | 290171 | Broiler Pan |
|
- | |||||
| 35 | 313071 | Broiler Pan Grid |
|
- | |||||
| 36 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 37 | 295974 | Holder-oven Lamp Bulb |
|
- | |||||
| 38 | 326047 | Seal-oven Door |
|
- | |||||
| 39 | 327875 | Retainer-oven Door Seal |
|
- | |||||
| 40 | 327279 | Front Frame |
|
- | |||||
| 41 | 328984 | Retainer-insulation (rt. Or Lt.) |
|
- | |||||
| 42 | W10820036 | Insulation-rt. Or Lt. (Replaces: 296141) |
|
Immediately | $ 27.45 | ||||
| 43 | 312353 | Range Service Cord |
|
- | |||||
| 44 | 326068 | Oven Rack (2 Req) |
|
- | |||||
| 45 | 327084 | Oven Bottom |
|
- | |||||
| 46 | 115533 | Thermostat Bulb Clip (2 Req) |
|
- | |||||
| 47 | 329314 | Insulation-flue Deflector |
|
- | |||||
| 48 | 327252 | Cover-disconnect Retainer |
|
- | |||||
| 49 | 327232 | Retainer-disconnect |
|
- | |||||
| 50 | 232150 | Disconnect |
|
- | |||||
| 51 | 97047 | Clamp |
|
- | |||||
| 52 | 327481 | Spring-broiler Drawer (lt. Or Rt) |
|
- |
