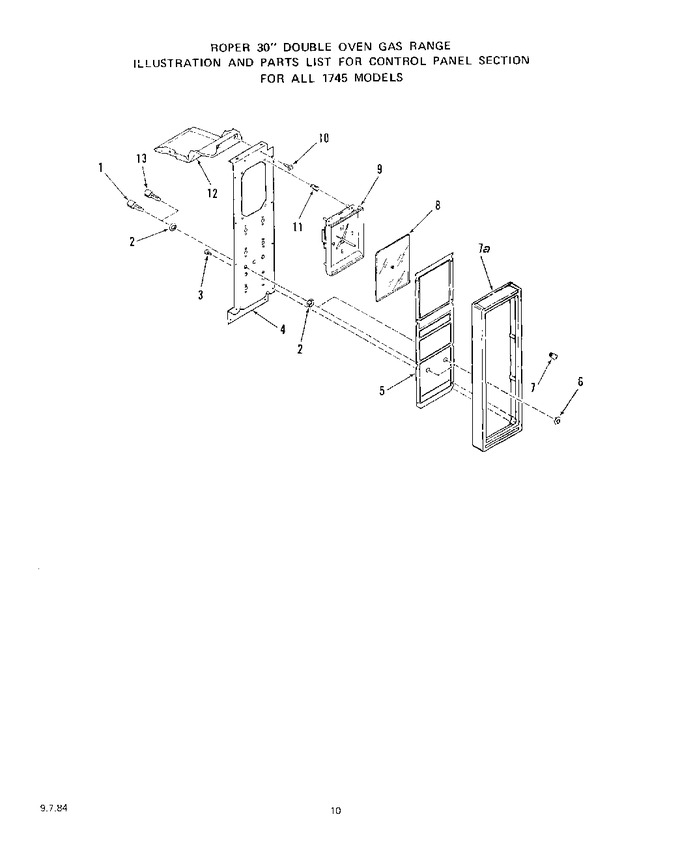

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	288508		Push Switch-fluorescent Lamp		Appelez-nous	-
2	236129		Pal Nut 3/8-27 (4 Req)		Appelez-nous	-
3	315617		Screw 4-24x1/4``		Appelez-nous	-
4	327646		Mounting Panel-controls		Appelez-nous	-
5	329672		Control Curtain (inc`s. Key 7a)		Appelez-nous	-
6	321667		Trim Nut		Appelez-nous	-
7	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
8	325334		Lens - Clock		Appelez-nous	-
9	328521		Clock W/4 Hr. Timer		Appelez-nous	-
10	293121		Screw 6-32x1/4``		Appelez-nous	-
11	293577		Tubular Clip		Appelez-nous	-
12	326354		Barrier Intrusion		Appelez-nous	-
13	327945		Upper		Appelez-nous	-
13	307573		Push Switch - Oven Light		Appelez-nous	-
13	326870		Switches - Gas Valve		Appelez-nous	-
13	327789		Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
