SELECT A DIAGRAM

01 - Cover Sheet

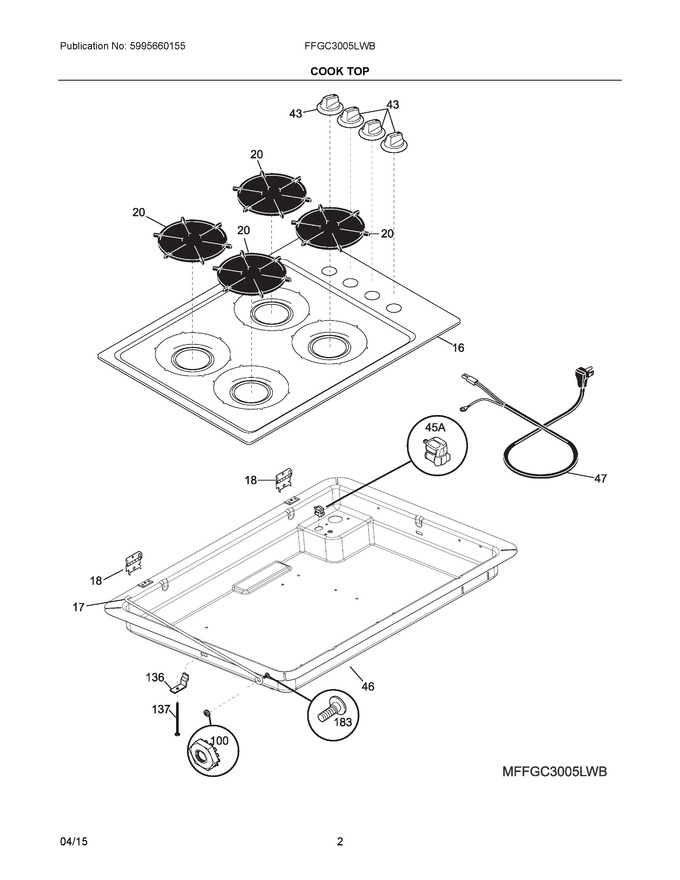

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	305593103		Panel, Main Top, White		Appelez-nous	-
17	3016817		Rod, Maintop Support		Appelez-nous	-
18	318074310		Hinge, Maintop, (2)				$ 51.98
20	316040807		Grate, Black, (4)		Appelez-nous	-
43	316544013		Knob, Control, White		Appelez-nous	-
46	305385920		Box, Burner		Appelez-nous	-
47	305574902		Power Cord, Electrical, Supply				$ 69.46
100	305517600		Nut, Keps		Appelez-nous	-
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
183	305456500		Screw		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NI	305376100		Screw, 6-18 X 3/8		Appelez-nous	-
NIA	305338303		Washer, Flat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
