SELECT A DIAGRAM

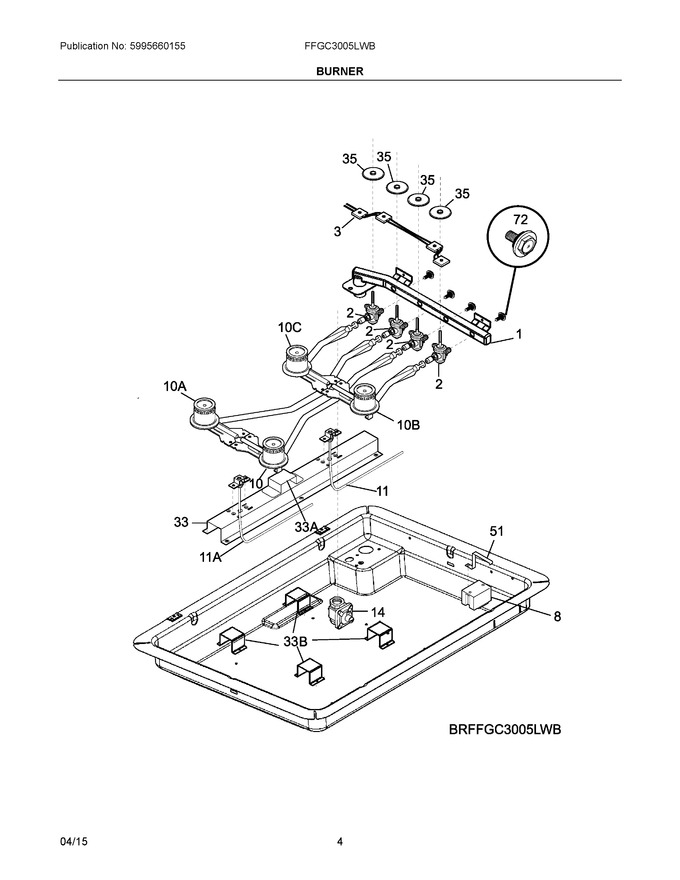

01 - Cover Sheet


02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305596300		Manifold Pipe		Appelez-nous	-
2	318087010		Valve, Top Burner		Appelez-nous	-
3	318232604		Wiring Harness, W/igntr Switch				$ 292.73
8	5304518635		Module, Spark   (Replaces: 316135700)				$ 87.21
10	5303320654		Burner-top, Left Front		Appelez-nous	-
11	318148604		Ignitor, Top Burner, 17.5" Lead		Appelez-nous	-
14	318122707		Regulator, Pressure   (Replaces: 318122712)				$ 121.19
33	305487700		Bracket, Support		Appelez-nous	-
35	318146301		Bushing				$ 34.34
51	318024201		Bracket, Spark Module				$ 9.08
72	5303323141		Screw, Valve Mtg, 1/4-20 X 5/16		Appelez-nous	-
10A	5303320655		Burner-top, Left Rear		Appelez-nous	-
10B	5303320656		Burner-top, Right Front		Appelez-nous	-
10C	5303320657		Burner-top, Right Rear		Appelez-nous	-
11A	318148605		Ignitor, Top Burner, 28.5" Lead		Appelez-nous	-
33A	305593000		Bracket		Appelez-nous	-
33B	305593001		Bracket, (4)		Appelez-nous	-
NI	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NI	305338602		Screw, (3)		Appelez-nous	-
NI	803910601		Screw, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
