01 - Cover Sheet

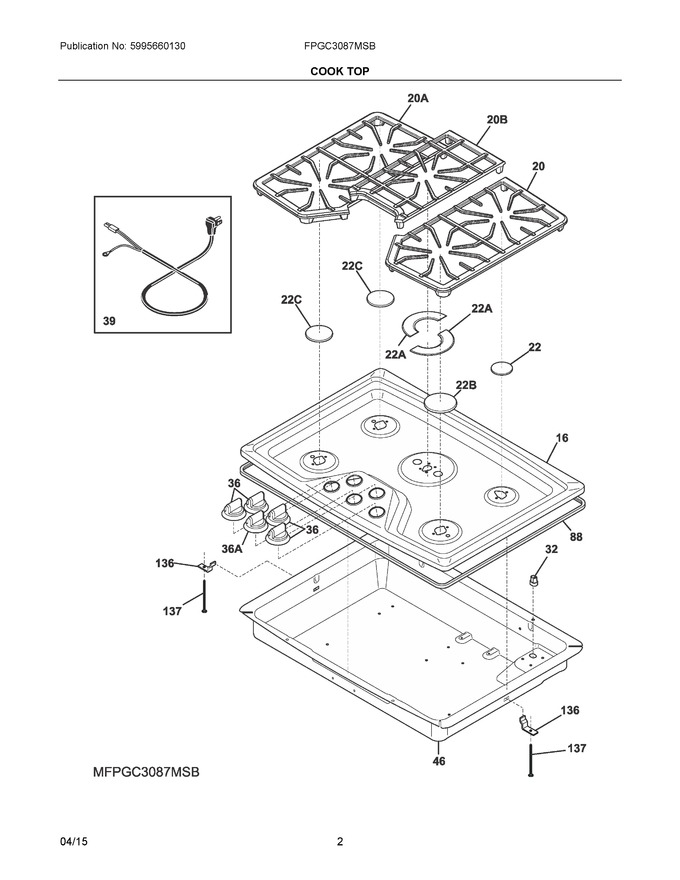

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	305582400		Maintop, Stainless, W/graphics		Appelez-nous	-
20	318391606		Grate, Top Burner, Black, Rh		Appelez-nous	-
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
36	318948100		Knob, Top Valve, Stainless, (4)		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	305385916		Box, Burner		Appelez-nous	-
88	305585700		Gasket, Cooktop, 93		Appelez-nous	-
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	318391706		Grate, Top Burner, Black, Lh		Appelez-nous	-
20B	318391806		Grate, Top Burner, Black, Center		Appelez-nous	-
22A	316262204		Cap, 17k Twin Burner, Black, (2)			Immediately	$ 72.80
22B	316261904		Cap, 12k Burner, Black				$ 46.36
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
36A	318948101		Knob, Top Valve, Stainless, 18k		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	305424100		Tape, Aluminum		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
