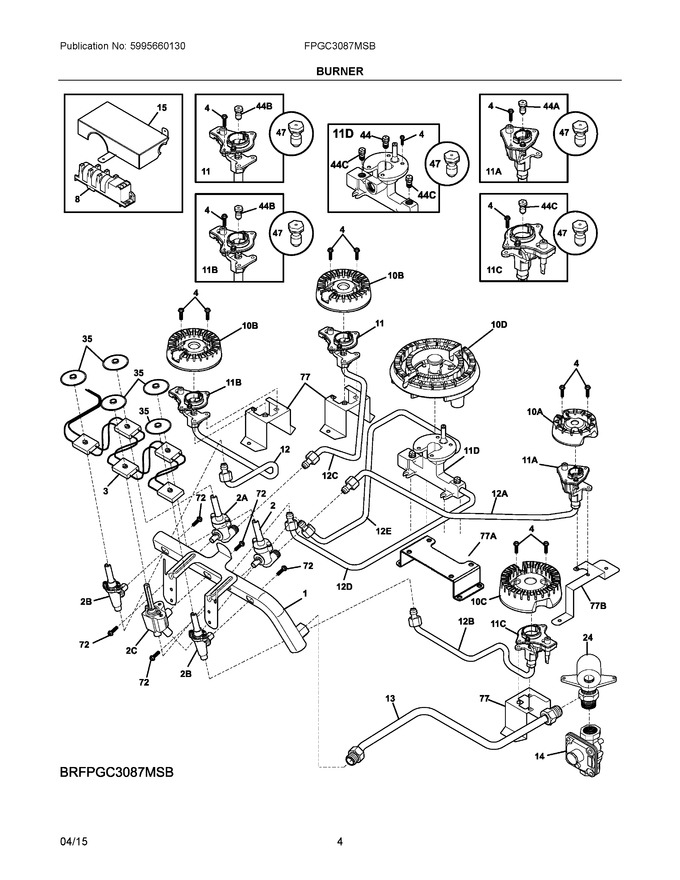

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318569804		Manifold, Pipe				$ 110.09
2	318387400		Valve, Burner, 5k				$ 174.43
3	318232660		Wiring Harness, W/igntr Switch				$ 162.28
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
8	808608804		Module, Spark   (Replaces: 318079001)			Immediately	$ 76.06
11	316540704		Ignitor/orifice Assy., Top Burner, 7.5k, W/holder				$ 77.60
12	318560725		Tube, Burner, Lf				$ 41.32
13	318054517		Tube, Connection, Manifold				$ 118.55
14	318122717		Regulator, Pressure		Appelez-nous	-
15	318024209		Deflector, Spark Module				$ 21.16
24	318054010		Elbow, Fitting				$ 172.23
35	318146301		Bushing				$ 34.34
44	316527514		Orifice, Burner, Simmer				$ 20.56
47	5304537305		Conversion Kit, Lp   (Replaces: 318565429)			Immediately	$ 101.37
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318920309		Bracket, Burner Mtg, (3)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438000		Burner, Sealed, 12k				$ 67.81
10D	318567000		Burner Assembly, Twin				$ 135.45
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11C	316540702		Ignitor/orifice Assy., Top Burner, 12k, W/holder			Immediately	$ 12.85
11D	316440102		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder				$ 191.46
12A	318560724		Tube, Burner, Rr				$ 37.38
12B	318560723		Tube, Burner, Rf				$ 39.69
12C	318560726		Tube, Burner, Lr, (2)				$ 37.38
12D	318560735		Tube, Center Burner, Simmer				$ 39.53
12E	318560734		Tube, Center Burner, Main				$ 39.53
2A	318387401		Valve, Top Burner, 9.5k				$ 166.56
2B	316520704		Valve, Burner, 17k				$ 142.54
2C	316574900		Valve, Top Burner, 18k Dual				$ 242.16
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527500		Orifice, Burner, 9.5k				$ 21.40
44C	316527502		Orifice, Burner, 12k				$ 22.68
77A	305583001		Bracket, Burner, Dual				$ 10.66
77B	318920304		Bracket, Burner Mtg		Appelez-nous	-
NI	305338602		Screw, (3)		Appelez-nous	-
NI	305338601		Screw, (2)				$ 4.26
NI	316566901		Sleeve, Insulator				$ 12.89
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318199789		Wiring Harness, Ignitor				$ 107.26
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
