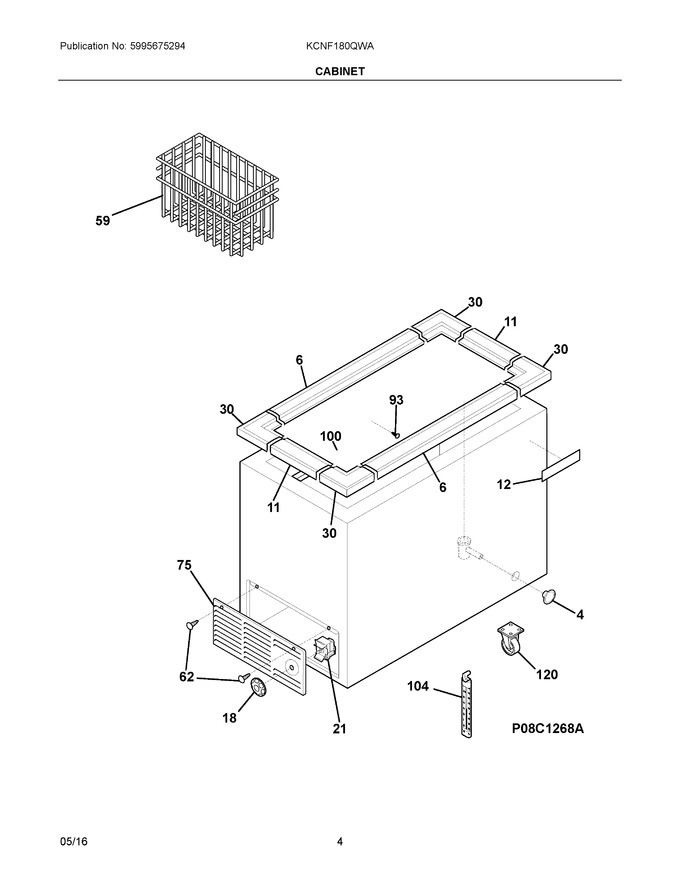

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
4	297013600		Plug, Drain, Exterior				$ 9.98
6	5304493712		Breaker, W/o Lock		Appelez-nous	-
11	5304493668		Breaker, White, Chest End				$ 16.22
12	297146601		Nameplate, Commercial		Appelez-nous	-
18	216707201		Knob, Temp Control				$ 37.54
21	297216043		Control-temperature   (Replaces: 297216036)				$ 49.16
30	5304495365		Breaker, White, Corners				$ 19.14
59	297405001		Basket		Appelez-nous	-
73	297070101		Thermometer		Appelez-nous	-
75	216034301		Panel, Access, White				$ 103.01
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
100	297424803		Track, Basket		Appelez-nous	-
120	216621000		Caster		Appelez-nous	-
150	216997400		Support, Track-basket				$ 10.61
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216614300		Screw		Appelez-nous	-
NI	216621100		Wrench		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
