SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
02 - Doors
03 - Cabinet

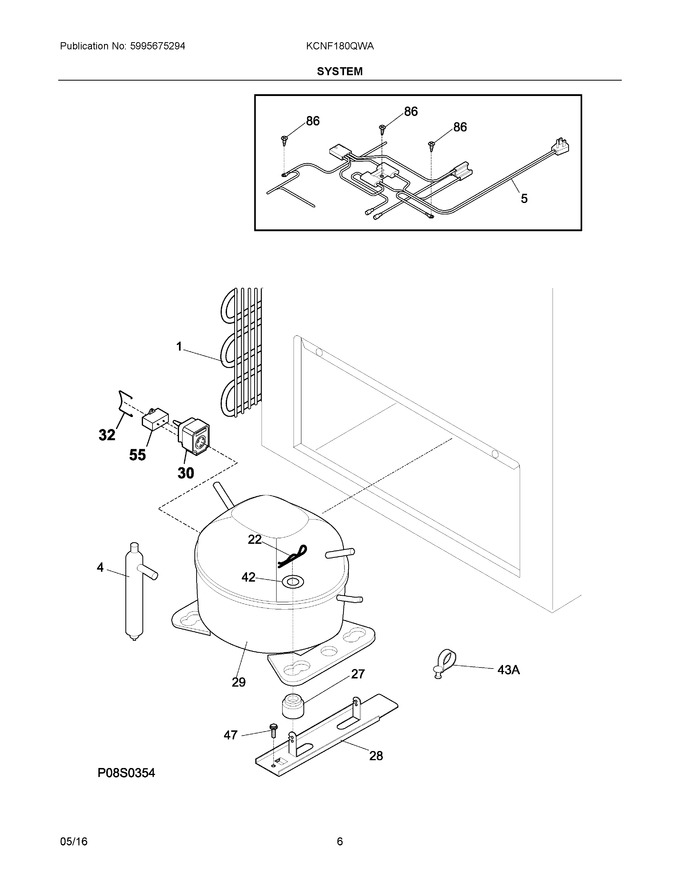

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304494127 | Condenser |
|
- | |||||
| 4 | 5303305677 | Filter-dryer (Replaces: 297396820) |
|
Immediately | $ 31.67 | ||||
| 5 | 297346110 | Harness, Main |
|
- | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216498900 | Grommet, Compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5304464023 | Support, Compressor |
|
- | |||||
| 29 | 5304524545 | Compressor, Djk51c (Replaces: 297438450) |
|
$ 502.97 | |||||
| 30 | 297259505 | Controller, Compressor |
|
$ 63.79 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 42 | 216232701 | Washer, Flat |
|
$ 2.10 | |||||
| 47 | 216629601 | Screw, Hex Washer Head, 10-16 X 0.500, Tapping |
|
$ 13.01 | |||||
| 55 | 297286812 | Capacitor-run, 250 Va, 12 Mf (Replaces: 297286802) |
|
Immediately | $ 11.78 | ||||
| 86 | 216036601 | Screw, Rwhd, 8-32a X 0.500, Gx-ca |
|
$ 13.65 | |||||
| 43A | 5303212614 | Clip, Harness Mount |
|
$ 2.88 | |||||
| NI | 297439100 | Heat Exchanger |
|
$ 107.02 |
