01 - Cover Sheet
02 - Control Panel
03 - Door

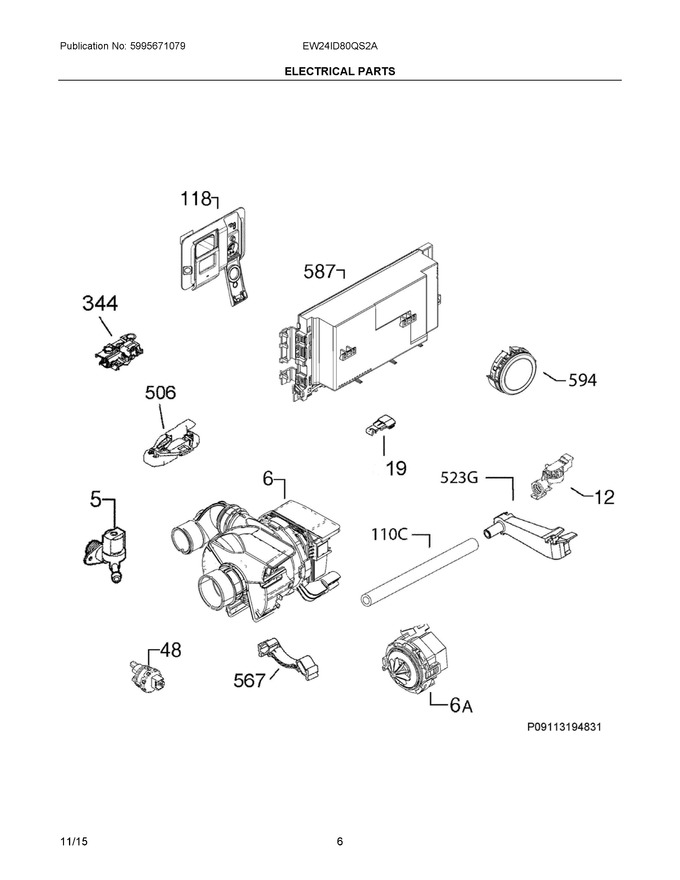

04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 807445903 | Valve, Fill |
|
Immediately | $ 41.23 | ||||
| 6 | A00223923 | Pump Assembly, Circulation, W/heater (Replaces: A00223902) |
|
Immediately | $ 289.13 | ||||
| 12 | 5304504077 | Switch, Pressure, Kit, Universal |
|
Immediately | $ 117.85 | ||||
| 19 | 140000781132 | Lamp, Door Indicator (Replaces: 111955706) |
|
- | |||||
| 48 | A00040106 | Sensor, Turbidity (Replaces: A00040101) |
|
Immediately | $ 62.90 | ||||
| 118 | 5304536277 | Dispenser, Detergent (Replaces: A00130306) |
|
Immediately | $ 240.20 | ||||
| 344 | 111315040 | Door Lock, Assembly |
|
Immediately | $ 210.12 | ||||
| 506 | A00056506 | Switch Assembly, Float (Replaces: A00056504) |
|
Immediately | $ 52.28 | ||||
| 567 | 117302400 | Support, Motor, Rubber |
|
- | |||||
| 587 | 117492670 | Control Assembly, Configured, Pb100 |
|
$ 336.51 | |||||
| 594 | 5304521592 | Internal Light, Led (Replaces: 807453001) |
|
$ 139.10 | |||||
| 110C | 117435611 | Hose, Pressure Sensor, To Sump |
|
$ 12.60 | |||||
| 523G | A02690801 | Adaptor, Pressure Sensor |
|
- | |||||
| 6A | 140180051066 | Drain Pump, Assembly (Replaces: A00060401) |
|
Immediately | $ 60.71 | ||||
| NI | A00233413 | Harness, Wiring, Pcb, Door |
|
$ 148.16 | |||||
| NI | A00233510 | Harness, Wiring, Pcb, Pump |
|
- | |||||
| NI | 807555203 | Harness, Wiring, Pcb, Heater |
|
Immediately | $ 116.85 | ||||
| NI | 117186404 | Cover, Protection, Wiring Harness |
|
$ 51.98 | |||||
| NI | 405526082 | Screw, Kit, 4-2 X 11, (6pcs) |
|
$ 6.51 |
