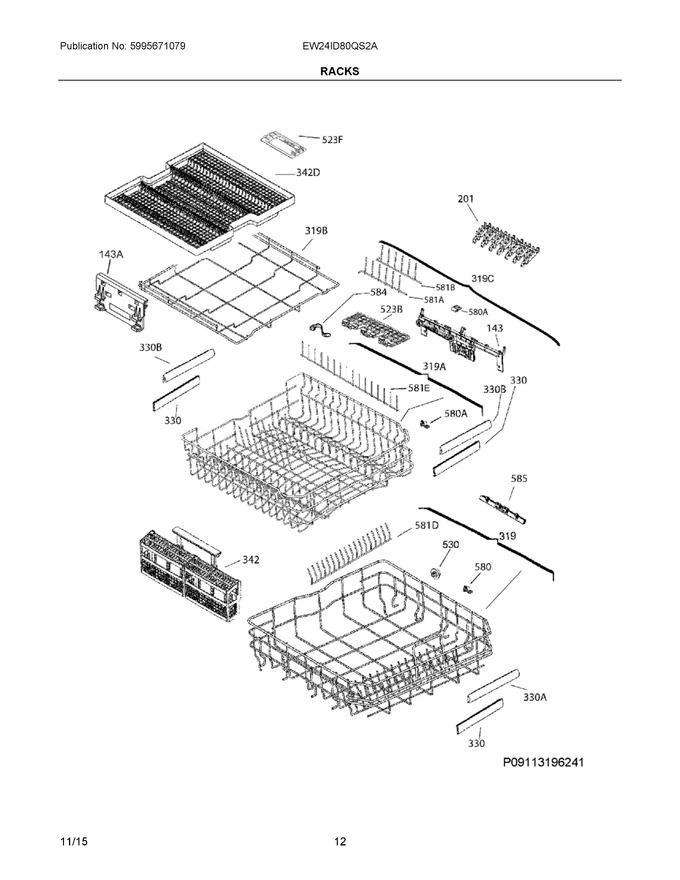

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
143	808092517		Adjustment, Upper Rack, Lh   (Replaces: 808092501)			Immediately	$ 81.98
201	808507801		Soft Grip, Spikes, Rubber		Appelez-nous	-
319	A00241305		Rack Assembly, Lower, Silver				$ 333.01
330	A00212203		Handle, Rack, Front				$ 83.64
342	A00173201		Cutlery Basket, Assembly, Grey				$ 172.60
530	405507213		Rack Roller, Kit, Lower				$ 45.46
580	807282902		Clip, Partition, Lower Rack				$ 65.92
584	A00924504		Clip, Cup				$ 33.42
585	A00209201		Holder, Accessory		Appelez-nous	-
143A	808092518		Adjustment, Upper Rack, Rh   (Replaces: 808092502)			Immediately	$ 76.97
143A	A00008104		Holder, Basket, Grey, Top   (Replaces: A00008103)			Immediately	$ 29.69
319A	A00251514		Rack Assembly, Upper, Silver		Appelez-nous	-
319B	A00004305		Rack, Top, Silver				$ 363.30
319C	117492560		Rack Assembly, Complete, Silver, Upper, W/adjustments				$ 460.11
330A	A00212206		Handle, Rack, Front, Electrolux				$ 95.68
330A	A00212104		Handle, Lower Rack, Rear		Appelez-nous	-
330B	A00212103		Handle, Upper Rack, Rear				$ 82.93
342D	A02899201		Cutlery Rack, Shelf, Grey   (Replaces: 807085302)				$ 160.77
523B	808124101		Shelf, Cup, Blue				$ 103.38
523F	807267903		Holder, Knife, Blue		Appelez-nous	-
580A	A00141702		Fixing Clamp, Partition, Upper				$ 74.99
580AA	807265302		Fixing Clamp, Partition, Upper		Appelez-nous	-
581A	A00237001		Partition, Upper Rack, Lh				$ 160.61
581B	807077101		Partition, Upper Rack, Rh				$ 156.64
581D	A00240901		Partition, Lower Rack				$ 155.93
581E	A00241001		Partition, Upper Rack, 525mm, Long		Appelez-nous	-
