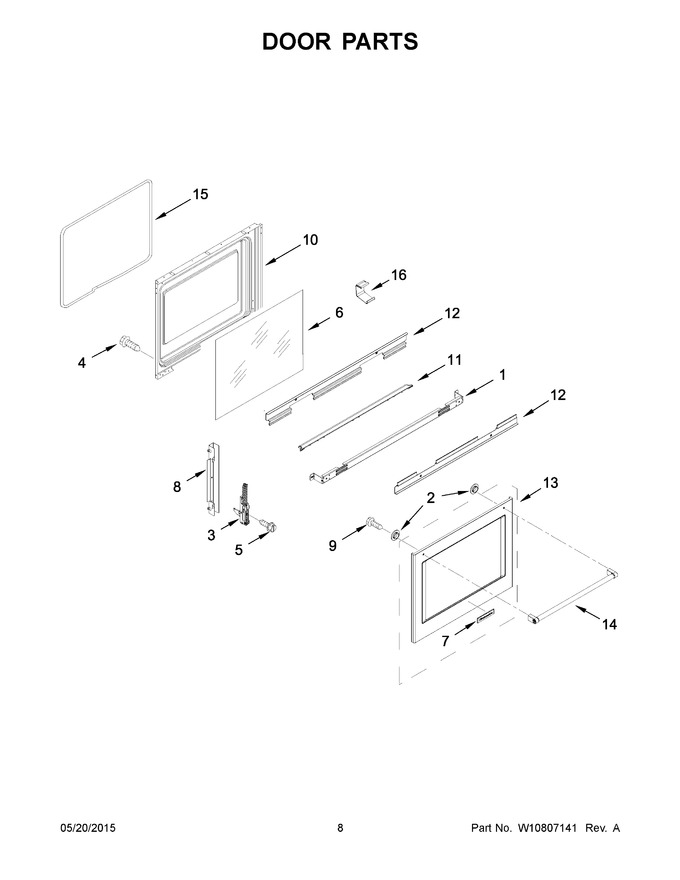

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Trim, Door (bracket, Glass Upper Handle) |
|
Immediately | $ 34.22 | ||||
| 2 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 12.69 | ||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 329.70 | |||||
| 7 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 8 | W10541883 | Hinge, Support Rail |
|
$ 38.48 | |||||
| 9 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 10 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 11 | W11251351 | Black (Replaces: W10613791) |
|
Immediately | $ 119.72 | ||||
| 12 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 13 | W10906445 | Glass Assembly, Outer Door (stainless) (Replaces: W10692526) |
|
$ 403.48 | |||||
| 14 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 203.55 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 |
