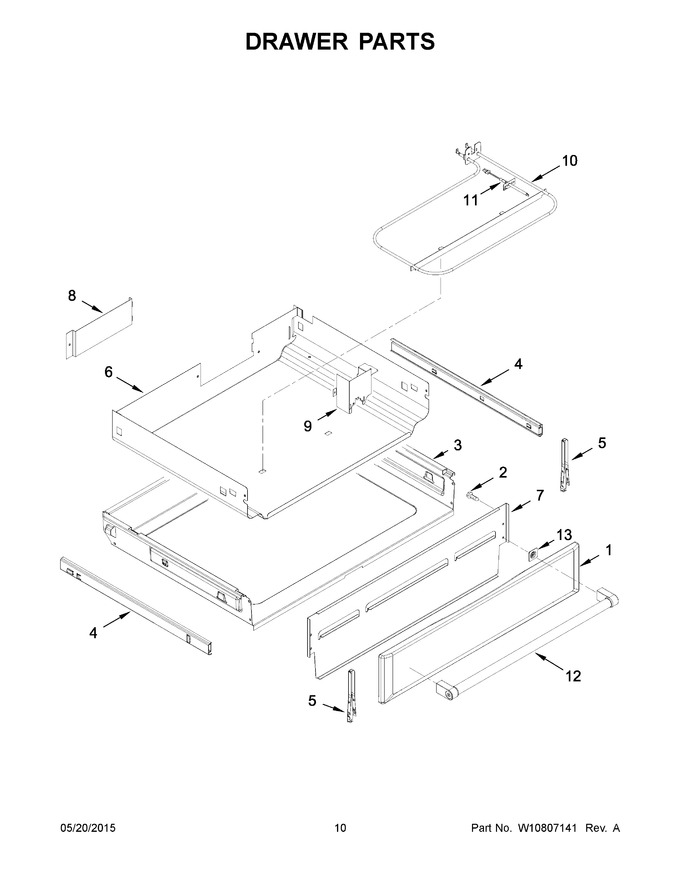

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11334144 | Panel, Drawer Front (stainless) (Replaces: W10330059) |
|
$ 178.80 | |||||
| 2 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 4 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 103.00 | |||||
| 6 | W10634260 | Enclosure, Warming |
|
Immediately | $ 179.16 | ||||
| 7 | W10748083 | Panel, Inner Drawer |
|
$ 149.84 | |||||
| 8 | W10325438 | Cover, Panel |
|
$ 134.56 | |||||
| 9 | W10634259 | Cover, Wire |
|
$ 75.29 | |||||
| 10 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 113.21 | |||||
| 11 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 236.21 | |||||
| 12 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 203.55 | |||||
| 13 | W11190816 | Spacer, Handle (Replaces: 3823F017-45) |
|
$ 14.94 | |||||
| 4A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 92.68 |
