Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300275602 Push Buttons Appelez-nous -
2 5300809495 Timer Knob Special Order $ 80.48

3 5300809576 Control Panel Appelez-nous -
4 240396801 Clamp   (Replaces: 5300808442) Special Order $ 19.13

5 5300807141 Screw-8b X 7/16`` Appelez-nous -
6 154057603 Timer Appelez-nous -
7 154076001 Insert-control Panel Appelez-nous -
8 5300809787 Switch-bracket Appelez-nous -
9 5300809175 Screw 8b X 7/16`` Appelez-nous -
10 154101901 Switch Appelez-nous -
11 5300809036 Lens-red (2) Special Order $ 20.90

12 5303270892 Screw-timer Mtg. (2) Appelez-nous -
13 5300809317 Light Assembly (2) Appelez-nous -
*77753 154055601 Wiring Harness Appelez-nous -
3A 5300809335 Grommet (2) (non-illustrated) Appelez-nous -

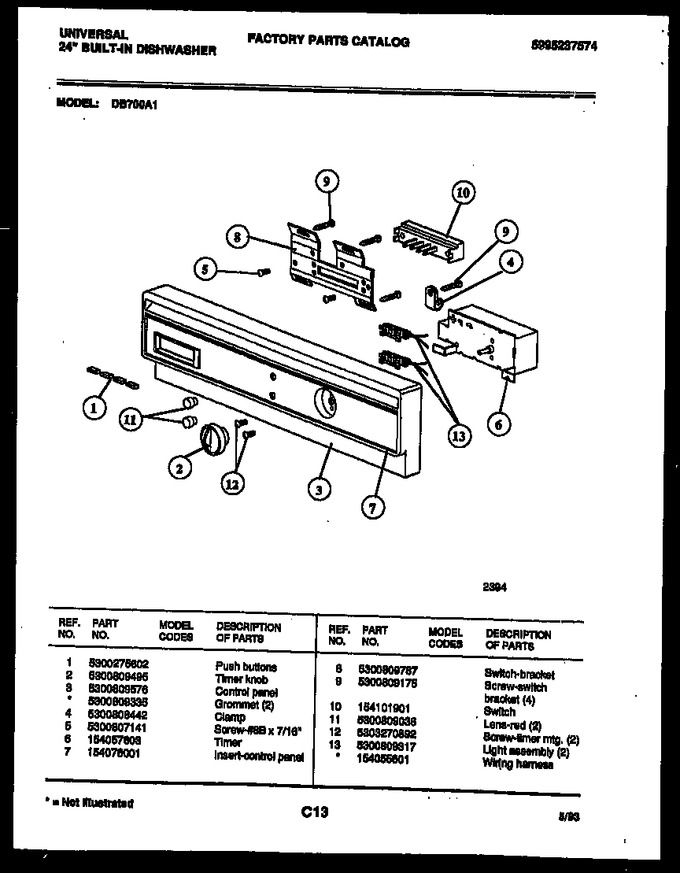

    View Diagram in Separate Window     Print Icon   Print Part List
