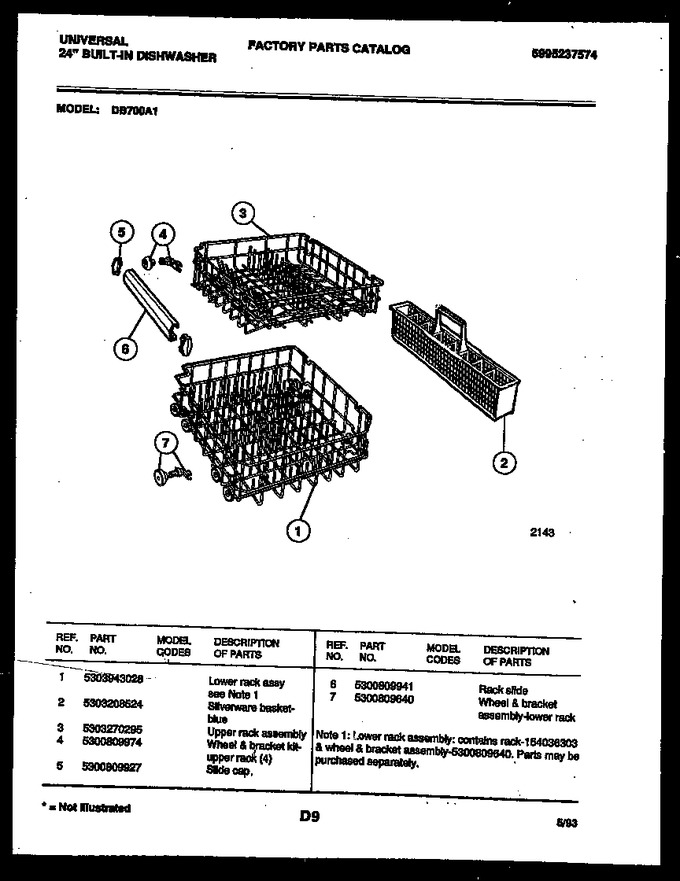

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303943028 | Lower Rack Assy (lower Rack Assembly: Contains Rack - 15 |
|
- | |||||
| 2 | 5304509753 | Silverware Basket-blue (Replaces: 5303208524) |
|
Immediately | $ 36.87 | ||||
| 3 | 5303270295 | Upper Rack Assembly |
|
- | |||||
| 4 | 5304535381 | Wheel & Bracket Kit - Upper Rack (4) (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide |
|
- | |||||
| 7 | 5304532229 | Wheel & Bracket Assembly-lower Rack (Replaces: 5300809640) |
|
Immediately | $ 12.75 |
