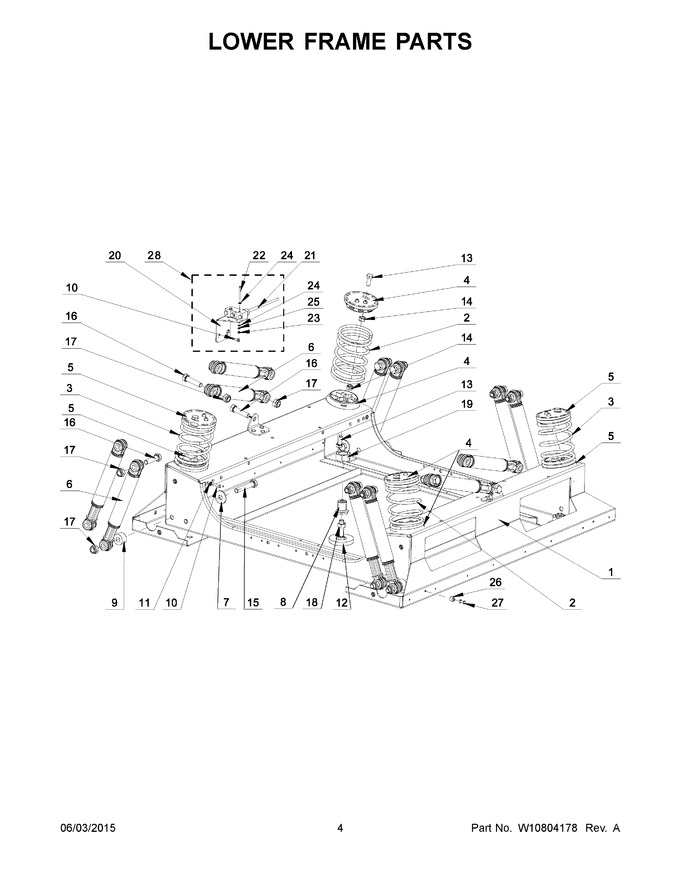

03 - Lower Frame Parts


04 - Stabilizing Spring Parts


05 - Cabinet Parts


06 - Control Panel Parts


07 - Door Parts


08 - Water Inlet Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drum And Tub Parts


12 - Drive Parts


13 - Steam Heating Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10711734		Lower Frame		Appelez-nous	-
2	W10711742		Spring (lf, Rr)		Appelez-nous	-
3	W10711753		Spring (rf, Lr)		Appelez-nous	-
4	W10711756		Spring Holder (lf, Rr)		Appelez-nous	-
5	W10711760		Spring Holder (rf, Lr)		Appelez-nous	-
6	W10711763		Damper		Appelez-nous	-
7	23004023		Washer M10		Appelez-nous	-
8	W10711766		Threaded Joint		Appelez-nous	-
9	W10711768		Roller		Appelez-nous	-
10	23002398		Bolt M4x16		Appelez-nous	-
11	23002950		Washer, Lock M4		Appelez-nous	-
12	23003458		Washer Foot		Appelez-nous	-
13	23002475		Bolt M8x20				$ 13.66
14	23001607		Nut M8		Appelez-nous	-
15	W10711778		Bolt M10x60		Appelez-nous	-
16	W10286257		Bolt M10x50		Appelez-nous	-
17	23001241		Nut M10				$ 2,647.47
18	DC60-50145A		Nut M10   (Replaces: 23001661)				$ 2.39
19	23003935		Nut M20		Appelez-nous	-
20	W10711782		Holder, Out Of Balance Switch		Appelez-nous	-
21	W10711785		Out Of Balance Switch		Appelez-nous	-
22	W10711786		Bolt M3x25		Appelez-nous	-
23	23002958		Nut M3		Appelez-nous	-
24	23003654		Washer M3.2		Appelez-nous	-
25	23002865		Washer, Lock M4		Appelez-nous	-
26	W10711787		Insert, Rivet		Appelez-nous	-
27	W10711789		Rivet W/crank (4x16)		Appelez-nous	-
28	W10711791		Out Of Balance Switch - Complete		Appelez-nous	-
