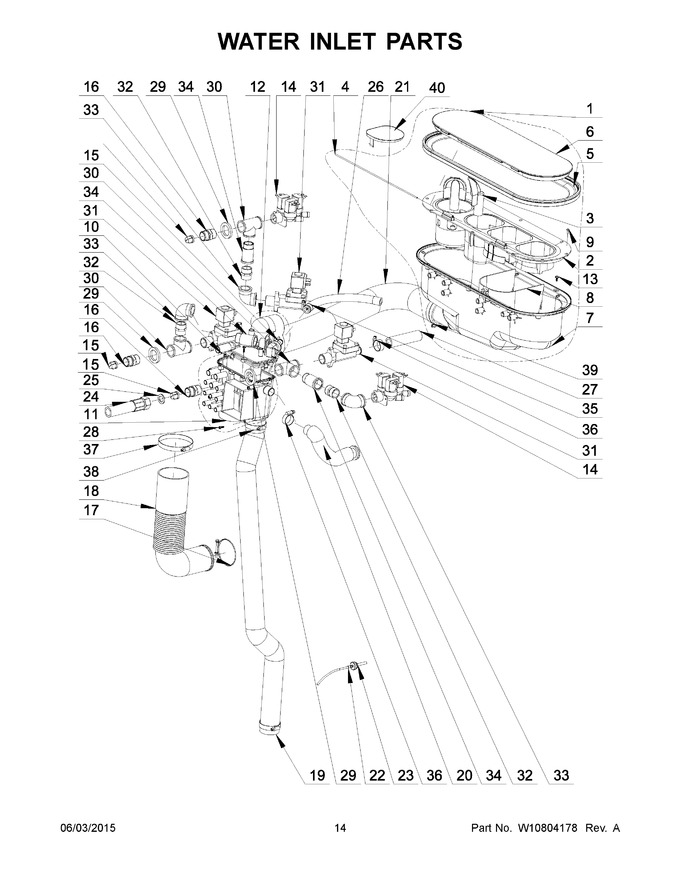

08 - Water Inlet Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drum And Tub Parts


12 - Drive Parts


13 - Steam Heating Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10712625		Soap Hopper Complete		Appelez-nous	-
2	W10712626		Chemical Dispenser Insert		Appelez-nous	-
3	W10712627		Siphon		Appelez-nous	-
4	W10712628		Pin, Hinge		Appelez-nous	-
5	W10712629		Dispenser Seal		Appelez-nous	-
6	W10712630		Dispenser Lid		Appelez-nous	-
7	W10712635		Chemical Dispenser Base		Appelez-nous	-
8	W10712638		Soap Hopper Insert Secondary		Appelez-nous	-
9	23003782		Screw				$ 3.66
10	W10712640		Mixer - Complete		Appelez-nous	-
11	W10712642		Mixer Body		Appelez-nous	-
12	W10712644		Mixer Lid		Appelez-nous	-
13	W10711800		Screw M4x11		Appelez-nous	-
14	W10712646		Three-way Valve - Complete (3/4")		Appelez-nous	-
15	23002922		Filter Screen		Appelez-nous	-
16	W10684103		Coupler		Appelez-nous	-
17	W10712716		Hose Clamp (62-70)		Appelez-nous	-
18	W10712649		Filling Hose		Appelez-nous	-
19	W10712663		Hose, Overflow		Appelez-nous	-
20	W10712699		Hose, Vent		Appelez-nous	-
21	W10712742		Dispenser Elbow - Hose		Appelez-nous	-
22	23003964		Temperature Sensor		Appelez-nous	-
23	W10712713		Seal Ring, Temperature Sensor		Appelez-nous	-
24	W10591507		Fill Hose		Appelez-nous	-
25	23002921		Washer, Fill Hose		Appelez-nous	-
26	23001507		Hose, Inlet		Appelez-nous	-
27	23001740		Hose D19 X 27		Appelez-nous	-
28	W10712718		Bolt M4x12		Appelez-nous	-
29	23001483		Washer M28x42x5		Appelez-nous	-
30	23001485		Tee (3/4" Pipe Thread)		Appelez-nous	-
31	23002071		Single Inlet Valve (3/4")		Appelez-nous	-
32	23001482		Nipple (3/4" Pipe Thread)				$ 747.91
33	23001756		Elbow (3/4")		Appelez-nous	-
34	23001484		Extension (3/4" Pipe Thread)		Appelez-nous	-
35	WP596669		Hose Clamp (12-22)   (Replaces: 23001506)			Immediately	$ 7.56
36	WP616099		Hose Clamp (20-32)   (Replaces: 23001262)			Immediately	$ 7.03
37	WP696392		Hose Clamp (70-90)   (Replaces: 23001258)				$ 7.31
38	23001750		Hose Clamp (40-60)		Appelez-nous	-
39	23001256		Hose Clamp (60-80)		Appelez-nous	-
40	W10734787		Block-off, Dispenser Cavity		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10712721		Four-way Valve - Complete (3/4")		Appelez-nous	-
