View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

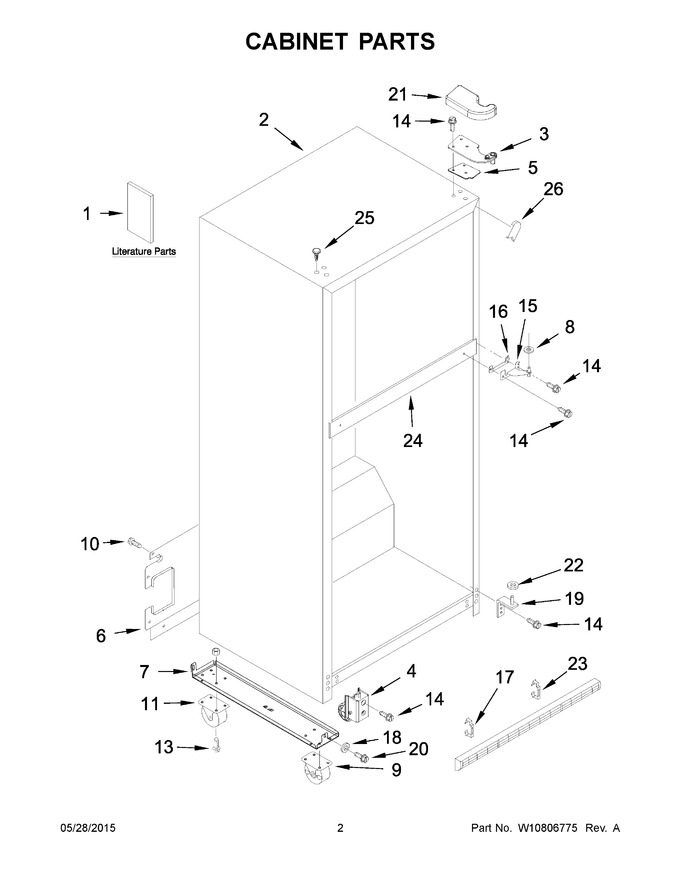

02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Top Door Parts
06 - Bottom Door Parts
07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10759582 | Energy Label |
|
- | |||||
| 2 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 3 | WPW10300065 | Hinge Assy, Top (top Right Hinge) (Replaces: W10300065) |
|
$ 11.95 | |||||
| 4 | W10849386 | Assembly, Roller (Replaces: W10725960) |
|
$ 98.36 | |||||
| 5 | W10883637 | Shim, Top Hinge (Replaces: W10338247) |
|
$ 13.67 | |||||
| 6 | 2254582 | Cover, Unit (Replaces: 2302357) |
|
$ 115.48 | |||||
| 7 | W10432294 | Bracket, Caster (left) |
|
- | |||||
| 8 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 9 | WP2253168 | Caster, Fixed (with Brake) (Replaces: 2253168) |
|
$ 115.63 | |||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 11 | 2253169 | Caster, Swivel |
|
- | |||||
| 12 | WP8533952 | Nut, Hex (Replaces: 8533952) |
|
$ 74.57 | |||||
| 13 | WP3400527 | Screw 5/16-18 X 7/8 (Replaces: 3400527) |
|
$ 6.77 | |||||
| 14 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 15 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 78.88 | ||||
| 16 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 17 | 2189356 | Clip, Grille |
|
$ 5.70 | |||||
| 18 | 8533956 | Lock Washer |
|
- | |||||
| 19 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 7.62 | ||||
| 20 | 3400241 | Screw 1/4-20 X 1-1/4 |
|
- | |||||
| 21 | W10353948A | Cover, Hinge (left Hand (black)) (Replaces: W10353948) |
|
$ 12.97 | |||||
| 22 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 23 | 2254385 | Clip, Grille |
|
$ 76.18 | |||||
| 24 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 25 | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 16.44 | |||||
| 26 | W11252732 | Filler Wrapper (black) (Replaces: W10283960) |
|
$ 11.21 | |||||
| 27 | 2254388 | Grille (black) |
|
$ 40.22 | |||||
| 1A | W10429698 | Use & Care Guide |
|
- | |||||
| 21A | W10353945A | Cover, Hinge (right Hand (black)) (Replaces: W10353945) |
|
$ 12.97 | |||||
| 3A | WPW10300065 | Hinge Assy, Top (top Left Hinge) (Replaces: W10337503) |
|
$ 11.95 | |||||
| 7A | W10432296 | Bracket, Caster (right) |
|
- |
