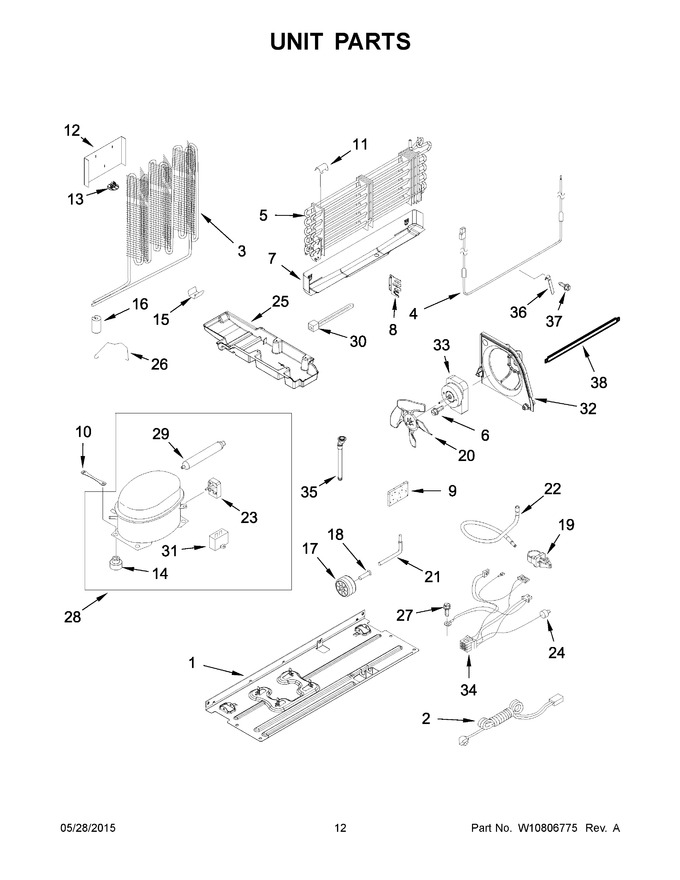

07 - Unit Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 140.83 | |||||
| 2 | 2187762 | Cord, Power |
|
- | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
Immediately | $ 238.46 | ||||
| 4 | WPW10316428 | Heater, Defrost (Replaces: W10316428) |
|
Immediately | $ 221.07 | ||||
| 5 | WPW10314205 | Assembly, Evaporator (Replaces: W10314205) |
|
$ 309.76 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 86.86 | |||||
| 8 | W10314197 | Bracket, Evaporator |
|
$ 20.09 | |||||
| 9 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 10 | W10236396 | Strap, Compressor |
|
Immediately | $ 17.84 | ||||
| 11 | 9791833 | Clip |
|
- | |||||
| 12 | W10349514 | Cover, Condenser Bottom |
|
$ 70.63 | |||||
| 13 | W10296661 | Clip, Bottom Cover |
|
$ 15.24 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 15 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 16.61 | |||||
| 16 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 6.93 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 20 | WPW10139483 | Blade, Fan (Replaces: W10139483) |
|
$ 85.56 | |||||
| 21 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 93.10 | |||||
| 22 | W10466682 | Tube, Suction |
|
$ 38.00 | |||||
| 23 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 80.29 | ||||
| 24 | N/P | Bi-metal Defrost (not Serviced) |
|
- | |||||
| 25 | W10890667 | Tray, Drain (Replaces: W10466213) |
|
$ 130.24 | |||||
| 26 | W10204187 | Strap, Bale |
|
- | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 28 | WPW10466675 | Compressor (also Order 876765 Tube Kit) (Replaces: W10391109) |
|
$ 715.31 | |||||
| 29 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 47.31 | ||||
| 30 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 31 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 32 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 75.42 | ||||
| 33 | WP2188874 | Motor, Condenser (Replaces: W10530280) |
|
Immediately | $ 102.56 | ||||
| 34 | W10595240 | Wire Assembly Unit (includes Bi-metal Defrost) |
|
- | |||||
| 35 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 56.20 | ||||
| 36 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 17.24 | |||||
| 37 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 38 | W10300902 | Cover, Heater |
|
$ 25.34 | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 82.22 | ||||
| NI | N/P | Refrigerant Charge 4.00 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access |
|
- |
