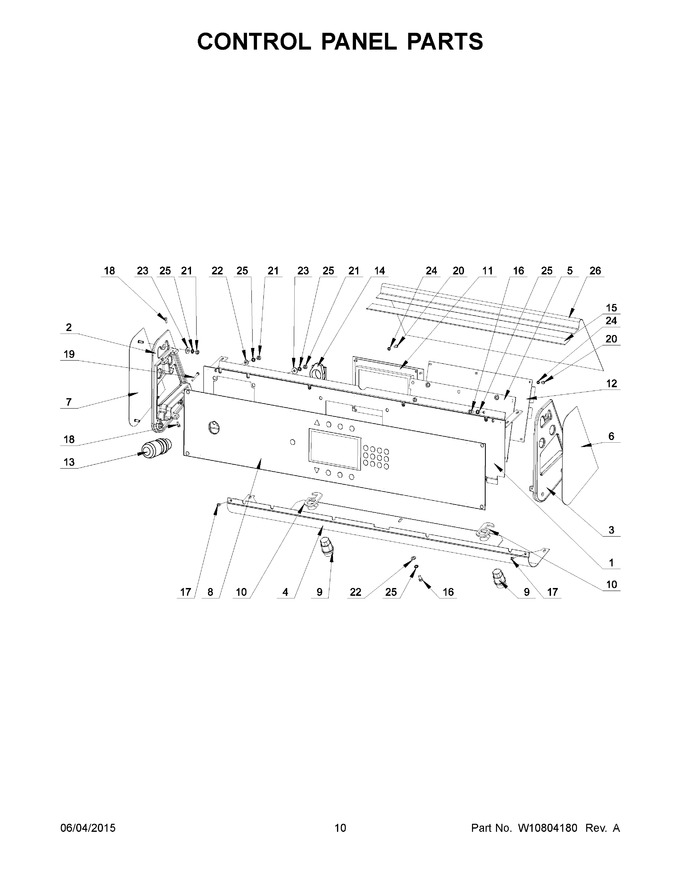

06 - Control Panel Parts


07 - Door Parts


08 - Water Inlet Parts


09 - Drain System Parts


10 - Rear Panel Parts


11 - Drum And Tub Parts


12 - Drive Parts


13 - Steam Heating Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10712206		Control Panel Bracket		Appelez-nous	-
2	W10712210		Sideboard - Left (painted)		Appelez-nous	-
3	W10712211		Sideboard - Right (painted)		Appelez-nous	-
4	W10712214		Lower Trim		Appelez-nous	-
5	W10712217		Control Board Bracket		Appelez-nous	-
6	W10712218		Sideboard Panel - Right (stainless)		Appelez-nous	-
7	W10712219		Sideboard Panel - Left (stainless)		Appelez-nous	-
8	W10712225		User Interface Facia/keypad Mc7 (pn)		Appelez-nous	-
9	W10712231		Lock		Appelez-nous	-
10	23001009		Hook, Lock		Appelez-nous	-
11	W10712233		Display Board - Cpu		Appelez-nous	-
12	W10712234		Main Control Board Mc7		Appelez-nous	-
13	W10712238		Knob, Emergency Stop		Appelez-nous	-
14	W10712240		Holder, Emergency Stop		Appelez-nous	-
15	23004126		Double-sided Tape		Appelez-nous	-
16	W10712243		Bolt M4x12		Appelez-nous	-
17	23001468		Bolt M3x12				$ 870.39
18	23004061		Screw M3x8		Appelez-nous	-
19	23002719		Bolt M3 X 20		Appelez-nous	-
20	23002869		Bolt M3x6		Appelez-nous	-
21	23003666		Nut M4		Appelez-nous	-
22	23002438		Washer M4.3		Appelez-nous	-
23	23001545		Washer M4		Appelez-nous	-
24	23002865		Washer, Lock M4		Appelez-nous	-
25	23002950		Washer, Lock M4		Appelez-nous	-
26	23002877		Shield, Rain		Appelez-nous	-
NI	W10761049		Key		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10712236		Wiring Harness, Main Control To Display Board		Appelez-nous	-
NI	23004139		Emergency Stop Harness (opl)		Appelez-nous	-
