Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10715313 Steam Valve (1/2") - Complete Appelez-nous -
2 W10286321 Steam Valve Without Coil Appelez-nous -
3 W10713170 Coil (50/60hz) Appelez-nous -
4 W10713172 Connector Appelez-nous -
5 W10713175 Bracket, Steam Valve Appelez-nous -
6 W10713176 Hose, Steam Appelez-nous -
7 W10713178 Steam Injector Appelez-nous -
8 W10713180 Pipe Adapter Appelez-nous -
9 W10693339 Filter, Steam Appelez-nous -
10 23001594 Heating Element Hole Plug Appelez-nous -
11 23002462 Bolt M6x20 Special Order $ 5.14

12 20007283 Washer M6   (Replaces: 23002440) Special Order $ 504.91

13 23003774 Washer M6 X 4 Appelez-nous -
14 23001575 Nut, Insert M6 Appelez-nous -
15 W10713181 Plug (1/2") Appelez-nous -
16 W10713182 Adapter (g3/8"/g1/2") Appelez-nous -
17 W10713183 Washer Appelez-nous -
18 23003907 Pipe Adapter Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

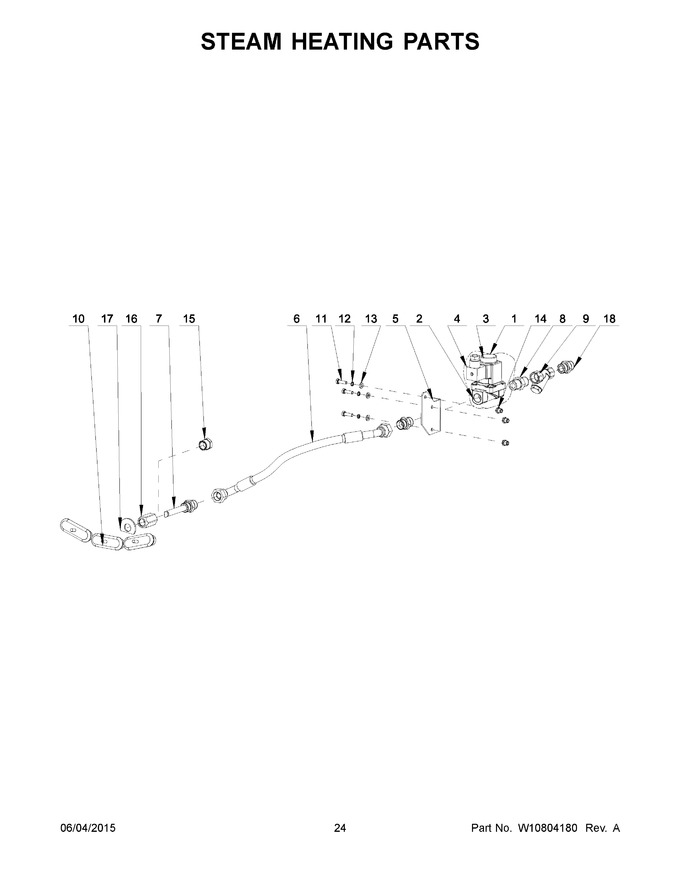

Diagram for MXS65PNATS
