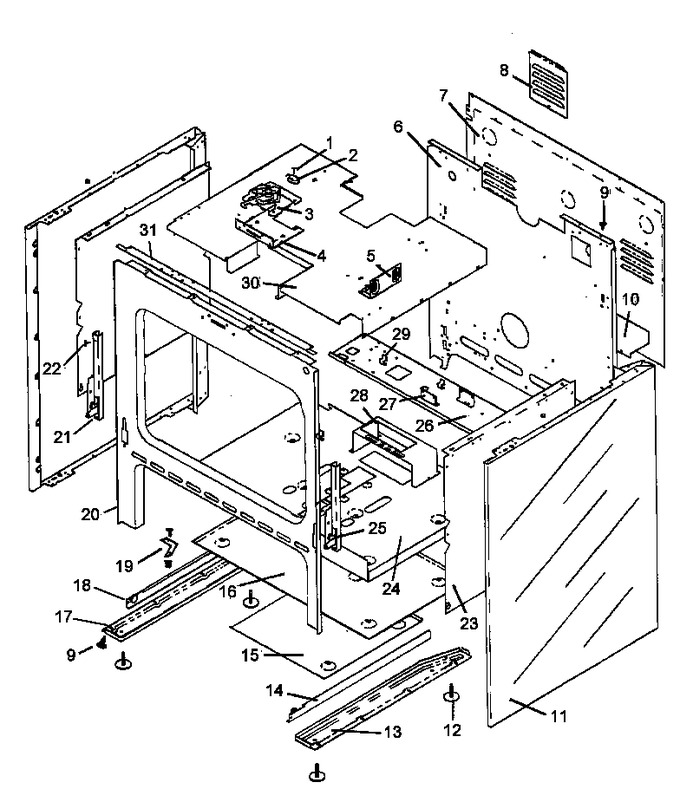

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
2	Y0314277		Switch, Door Latch		Appelez-nous	-
3	Y0309430		Latch, Oven Door		Appelez-nous	-
4	Y0309428		Bracket, Latch Mtg.		Appelez-nous	-
5	0304971		Bracket, Spark Module		Appelez-nous	-
6	Y0308315		Insul, Ret.-rear		Appelez-nous	-
7	Y0309571		Cover Plate, Rear		Appelez-nous	-
8	Y0058435		Access Plate, Rear		Appelez-nous	-
9	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
10	Y0306827		Cover, Electrical		Appelez-nous	-
11	306081W		Panel, Side (wht)		Appelez-nous	-
12	314187B		Leg,leveling Xxx		Appelez-nous	-
13	Y0314883		Leveling Leg\bottom Brace Rt		Appelez-nous	-
14	0314663		Track, Storage Dwr Rh		Appelez-nous	-
15	Y0315146		Shield, Heat		Appelez-nous	-
16	0059596		Shield		Appelez-nous	-
17	Y0314882		Leveling Leg\bottom Brace Lt		Appelez-nous	-
18	Y0314662		Track, Storage Dwr Lh		Appelez-nous	-
19	Y0307160		Anti-tip Pack		Appelez-nous	-
20	Y00000000		See Note Front Frame -- (not Field Replaceable		Appelez-nous	-
21	Y0314572		Kit, Door Hinge(lh-hs)		Appelez-nous	-
22	Y0300830		Screw No.10-32 X .375		Appelez-nous	-
23	0304282		Retainer, Insulation (side)		Appelez-nous	-
24	Y0308317		Insul, Ret.-bottom		Appelez-nous	-
25	Y0314573		Kit, Door Hinge(rh-ss)		Appelez-nous	-
26	0307065		Shelf, Gas Valve		Appelez-nous	-
27	0053182		Bracket, Gas Valve		Appelez-nous	-
28	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
29	Y0091587		Cable, Clip Esm		Appelez-nous	-
30	0315550		Retainer, Top Insul.		Appelez-nous	-
31	Y0315148		Filler, Front Frame		Appelez-nous	-
NI	WP488130		Nut   (Replaces: M0282007)				$ 6.27
NI	Y0301028		Bracket		Appelez-nous	-
NI	Y0041813		Screw Cabinet Trim		Appelez-nous	-
NI	Y0041852		Pal Nut Orifice Fittings		Appelez-nous	-
NI	308655B		Bushing, Snap (blk)		Appelez-nous	-
NI	Y0301555		Anchor, Plastic		Appelez-nous	-
NI	Y0058916		Cover, Electrical		Appelez-nous	-
NI	M0282005		Nut K   (Replaces: Y0078790)				$ 7.07
NI	Y0072230		Screw No.6-32 X 3/8		Appelez-nous	-
NI	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	Y0305004		Screw, No.8-18 X .500 Ab (blk)		Appelez-nous	-
