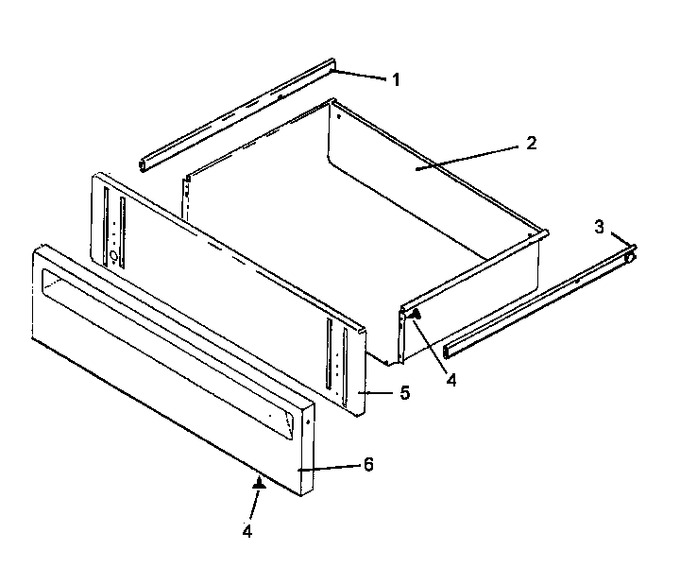

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0314664 | Runner Storage Dwr-lh |
|
- | |||||
| 2 | 306084W | Drawer, Storage (wht) |
|
- | |||||
| 3 | Y0314665 | Runner Storage Dwr-rh |
|
- | |||||
| 4 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| 5 | 309178W | Liner, Drawer Panel (wht) |
|
- | |||||
| 6 | 309176W | Panel, Drawer (wht) |
|
- |
