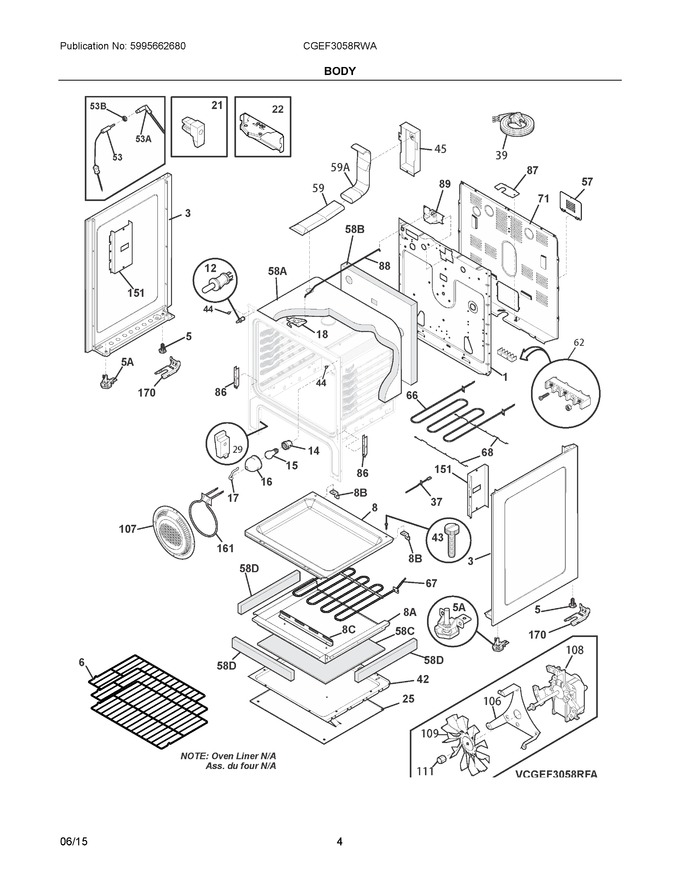

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401803		Panel, Main Back		Appelez-nous	-
3	316400142		Panel, Bodyside, White, Rh   (Replaces: 316400116)				$ 140.85
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven   (Replaces: 316496207)			Immediately	$ 103.48
8	316505602		Panel, Oven Bottom   (Replaces: 316505601)				$ 158.06
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 54.74
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
25	316406200		Shield, Heat, Lower				$ 87.97
29	807047102		Glide, Drawer, Front   (Replaces: 316407301)			Immediately	$ 23.82
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	318113111		Cord, Electric				$ 95.55
42	316400701		Shield, Wool, Lower				$ 162.30
43	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
44	316517600		Spacer, Oven Door				$ 12.05
45	316234100		Shield, Wire, Vent Tube				$ 70.16
53	5304504202		Probe, Meat Temp, Red   (Replaces: 318601303)			Immediately	$ 106.19
57	316283600		Cover, Access				$ 12.50
59	316208201		Tube, Oven Vent, Lower				$ 77.26
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	316430900		Element, Broil, 4000w			Immediately	$ 256.20
67	316505500		Element, Bake, 3000w			Immediately	$ 259.25
68	316429100		Support, Element, Broil				$ 62.51
71	316283204		Shield, Rear Wall   (Replaces: 316283200)				$ 56.12
86	316441300		Receptacle, Hinge				$ 21.97
87	316081202		Bracket, Cable Mtg				$ 4.96
88	316203500		Rod, Auto Latch				$ 72.30
89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
151	316404601		Shield, Bodyside				$ 21.27
161	316211603		Element, Convection Fan, 350 W				$ 255.86
170	316112005		Anti Tip Kit, Assembly			Immediately	$ 18.91
26A	316498200		Bracket, Support, Chassis, Aluminum				$ 52.33
37A	316490000		Probe, Oven Temp   (Replaces: 316490002)			Immediately	$ 58.30
3A	316400143		Panel, Bodyside, White, Lh   (Replaces: 316400117)				$ 140.85
53A	316536900		Receptacle, Probe				$ 163.30
53B	316247700		Nut, Mounting				$ 18.20
58A	316406604		Insulation, Oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406503		Insulation, Oven Back				$ 112.69
58C	316509600		Insulation, Lower Shield		Appelez-nous	-
58D	316509700		Insulation, Oven Bottom				$ 60.25
59A	316208401		Vent Tube, Assembly, W/catalyst				$ 194.14
59A	316208304		Tube, Oven Vent, Upper				$ 80.09
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316407200)			Immediately	$ 15.08
5AA	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
8A	316505701		Base, Bake Element				$ 244.44
8B	316506000		Bracket, Support, Oven Bottom, (2)				$ 4.55
8C	316505801		Support, Element				$ 25.48
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316282700		Screw, W/washer, 8-18				$ 9.93
NI	316247300		Catalyst, Oven Vent, Ceramic				$ 99.23
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316506217		Wiring Harness, Main				$ 213.87
NI	316581300		Retainer, Wire				$ 4.26
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIBA	316534100		Washer, Flat, Meat Probe				$ 14.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
