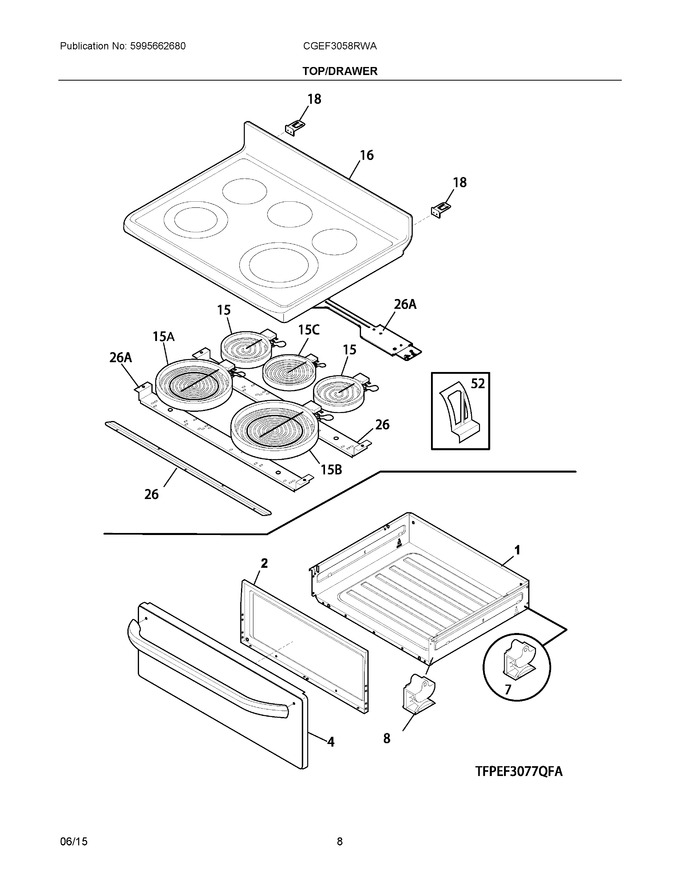

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner, Drawer (Replaces: 316403300) |
|
$ 28.83 | |||||
| 4 | 316403501 | Panel, Drawer Front, White |
|
$ 30.30 | |||||
| 7 | 316407402 | Glide, Drawer, Rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 15 | 316538904 | Lamp, Oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 807038639 | Maintop, White |
|
$ 420.58 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304500986 | Channel, Element Support, (2) (Replaces: 316427603) |
|
$ 41.68 | |||||
| 39 | 316554001 | Handle, Door/drawer, White |
|
$ 182.02 | |||||
| 43 | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 15A | 5304533520 | Element, Dual, 9"/6", Surface, 3000w, Quick Boil (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| 15A | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 15B | 316282101 | Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant |
|
Immediately | $ 283.03 | ||||
| 15C | 140273621015 | Element, Surface, Warmer, 100 W (Replaces: 316289800) |
|
Immediately | $ 35.77 | ||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26A | 5304500986 | Channel, Element Support, (2) |
|
$ 41.68 | |||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021132 | Screw, 8-18 X 11/16, Black, (3) |
|
$ 12.89 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316468101 | Cleaner, Smoothtop, W/sponge |
|
$ 9.93 | |||||
| NI | 316580474 | Harness, Wiring, Surface Units |
|
$ 168.36 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
