SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door

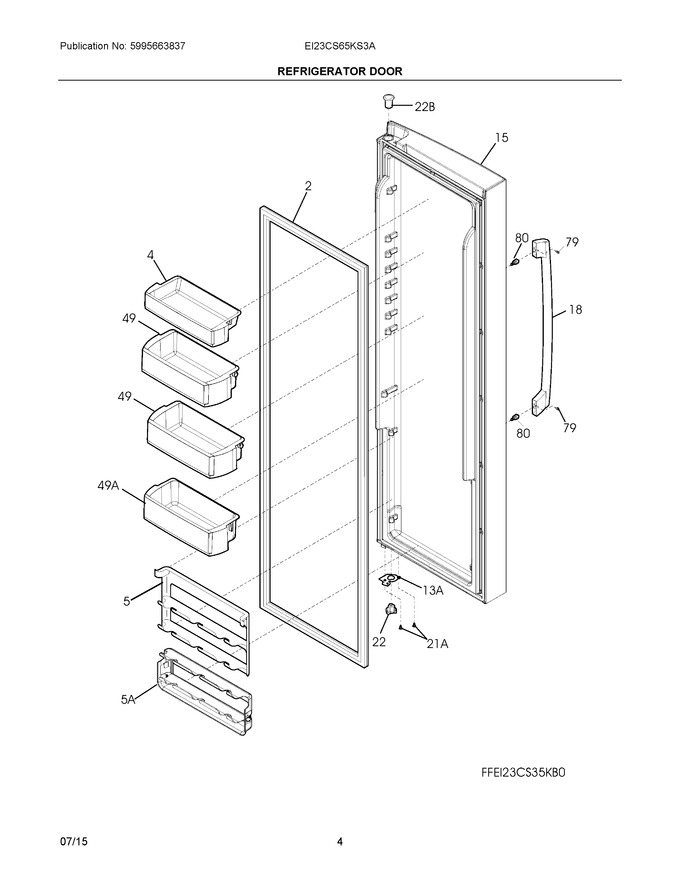

03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510207		Gasket-refr Door, Gray, Magnetic   (Replaces: 241510205)			Immediately	$ 97.14
4	242142701		Bin-door, 1/2 Gallon		Appelez-nous	-
5	241516102		Rack-can				$ 101.54
15	242038897		Door-refr, Stainless, Complete Assy				$ 976.38
18	241881304		Handle-refr Door, Stainless				$ 263.66
22	241990301		Bearing-hinge, Gray				$ 7.09
49	241750502		Bin-door, 2-liter		Appelez-nous	-
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	241990201		Door Stop, Black, Ref				$ 21.27
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing, Hinge, Top			Immediately	$ 19.13
49A	241750202		Bin-door, Gallon		Appelez-nous	-
5A	242134102		Rack-can, Lower		Appelez-nous	-
NIA	241601002		Wrench, Allen		Appelez-nous	-
NIB	241701902		Screwdriver, Hex, 3/32", Ball Driver				$ 19.85

    View Diagram in Separate Window       Print Part List
