SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet

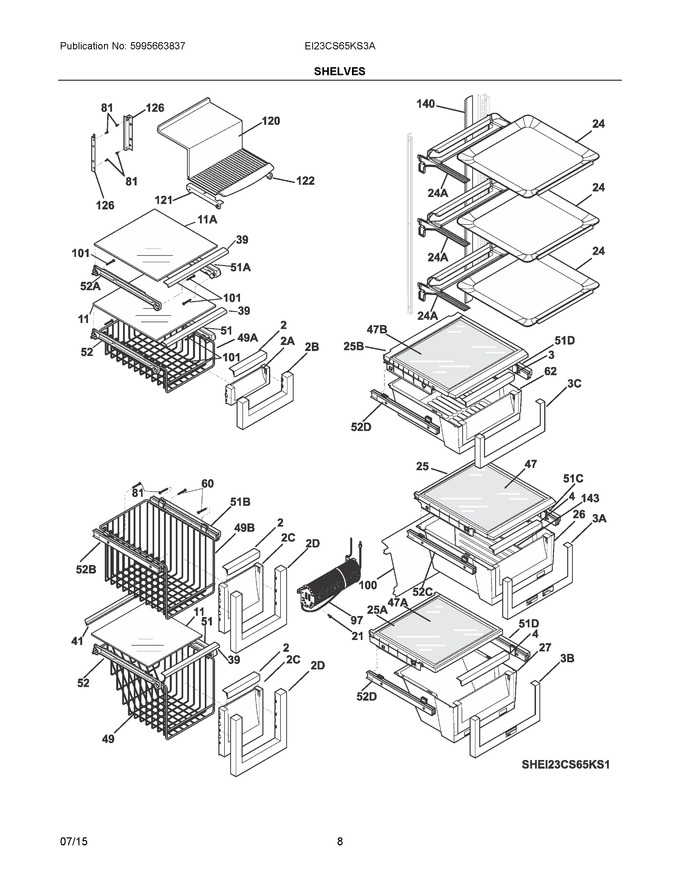

05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241745301		Handle-crisper Pan, Silver				$ 74.81
4	241950801		Handle-crisper Pan, Silver				$ 58.59
11	241711213		Shelf-freezer, Glass, Lower   (Replaces: 240443357)				$ 86.45
21	218843801		Screw, Hx Wshr Hd Sems, 8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	242128406		Shelf-"spill-safe", Formed Glass, Lift-off		Appelez-nous	-
25	241745502		Cover-crisper Pan, Upper		Appelez-nous	-
26	241745604		Pan-crisper, Upper, W/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper, Lower				$ 229.64
39	240367603		Trim-shelf, 11.65", Front				$ 74.42
41	241571201		Trim-shelf, Rear		Appelez-nous	-
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	241744201		Basket-sliding				$ 170.05
51	241799801		Hanger-shelf Glass, Rh				$ 58.82
52	241799901		Hanger-shelf Glass, Lh				$ 74.32
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
62	241783502		Pan-meat				$ 212.44
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	241532006		Water Tank				$ 130.41
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
120	241691701		Shelf-ice Cream				$ 74.42
121	241504701		Rail-ice Cream Shelf, Lh				$ 64.49
122	241504702		Rail-ice Cream Shelf, Rh				$ 75.08
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	241812502		Channel, Wtr Tube Cover				$ 76.97
143	241746001		Divider-crisper Pan				$ 51.50
11A	240443358		Shelf-freezer, Glass, Upper				$ 97.07
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
24A	242216403		Bracket-shelf, W/gasket, & Lock		Appelez-nous	-
25A	241747102		Cover-crisper Pan, Lower				$ 99.49
25B	241861501		Cover-meat Pan, Cantilever				$ 73.71
2A	241741601		Trim-basket, Front				$ 41.11
2B	241742101		Front-frzr Basket				$ 33.18
2C	241743201		Trim-basket				$ 83.69
2D	241743901		Trim-basket				$ 38.27
3A	241745801		Trim-crisper, W/hum Cntl&btn		Appelez-nous	-
3B	241745901		Trim-crisper, W/hum Cntl&btn		Appelez-nous	-
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443380		Insert-pan Cover, Glass, Meat Pan				$ 93.29
49A	241742201		Basket-sliding, Upper, Half		Appelez-nous	-
49B	241744001		Basket-sliding, Upper, Full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass, Rh				$ 63.79
51B	241809101		Hanger-basket, Rh				$ 187.82
51C	240579821		Hanger-basket, 13.00, Rh			Immediately	$ 125.45
51D	240579822		Hanger-basket, 10.19, Rh				$ 102.06
52A	241514801		Hanger-shelf Glass, Lh				$ 343.75
52B	241809102		Hanger-basket, Lh				$ 158.05
52C	240579819		Hanger-basket, 13.00, Lh				$ 113.00
52D	240579820		Hanger-basket, 10.19, Lh				$ 100.65
NI	242146208		Energy Guide		Appelez-nous	-
NIA	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow   (Replaces: 242200101)				$ 10.63
NIBA	297049500		Clip-slide, Basket			Immediately	$ 20.56
NICA	241563901		Clip-slide, Pan-crisper, Rear				$ 35.81
NICB	241564001		Clip-slide, Pan-crisper, Front		Appelez-nous	-
