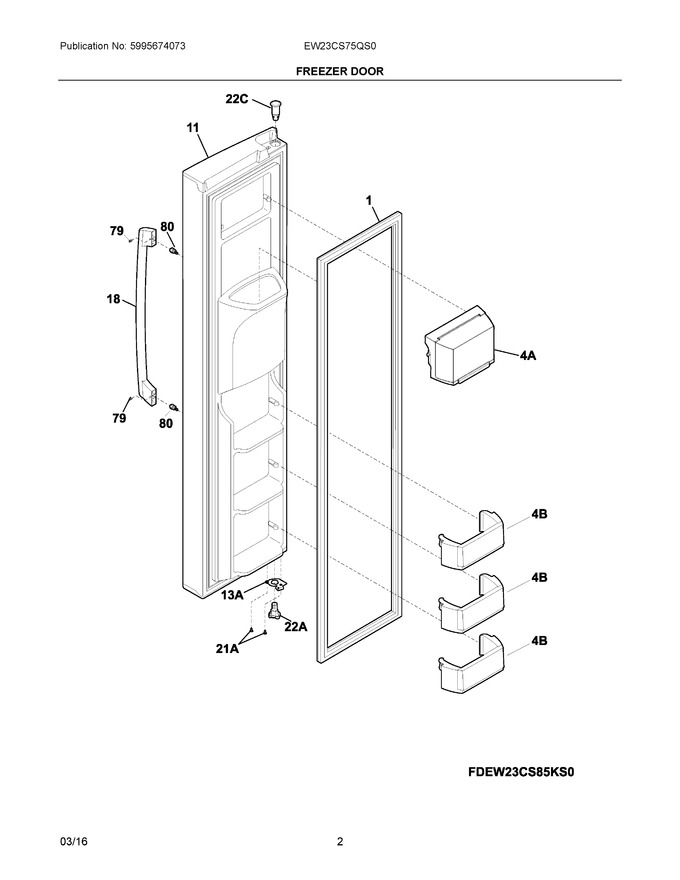

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241510208		Gasket-frzr Door, Gray, Magnetic   (Replaces: 241510206)			Immediately	$ 94.95
11	242026498		Door-frzr, Stainless, Complete Assy				$ 867.51
18	241881304		Handle-refr Door, Stainless				$ 263.66
79	218755401		Screw-set, 10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	241990202		Door Stop, Black, Frzr			Immediately	$ 21.27
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
22A	241990302		Bearing-hinge(frz), Closer				$ 7.09
22C	241760401		Bearing, Hinge, Top			Immediately	$ 19.13
4A	242143902		Bin-soft Freeze, W/door		Appelez-nous	-
4B	241752302		Bin-door, Frzr-upper		Appelez-nous	-
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
NI	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	242150401		Harness-wiring, Door				$ 108.44
NIA	241601002		Wrench, Allen		Appelez-nous	-
NIB	241701902		Screwdriver, Hex, 3/32", Ball Driver				$ 19.85
