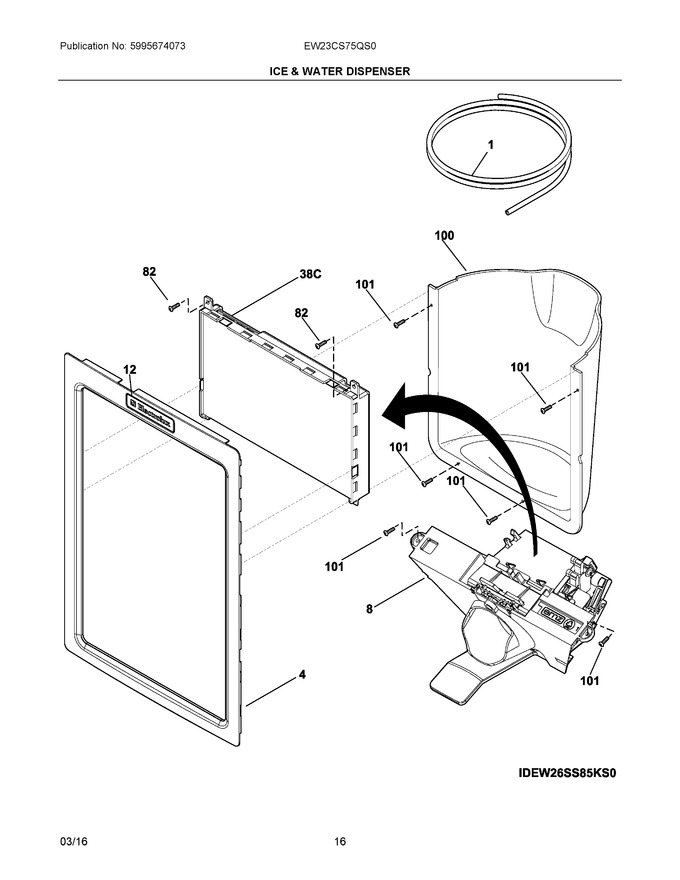

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube, Water, 60", Natural, Door |
|
Immediately | $ 60.25 | ||||
| 4 | 241893101 | Cover-module, Stainless-look (Replaces: 241757501) |
|
$ 70.75 | |||||
| 8 | 242100018 | Module-dispenser, Silver |
|
Immediately | $ 255.15 | ||||
| 12 | 241873301 | Nameplate, Electrolux, Stainless |
|
$ 11.15 | |||||
| 82 | 240363403 | Screw, 8-18 X 0.500, 2 |
|
- | |||||
| 100 | 241753301 | Liner-sump, Light Gray |
|
$ 206.25 | |||||
| 101 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 38C | 242041101 | Board-control |
|
$ 346.88 | |||||
| NIA | 218976420 | Tube-water Inlet, Inlet Valve, To Filter |
|
$ 44.65 | |||||
| NIB | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 20.56 | |||||
| NIC | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 |
