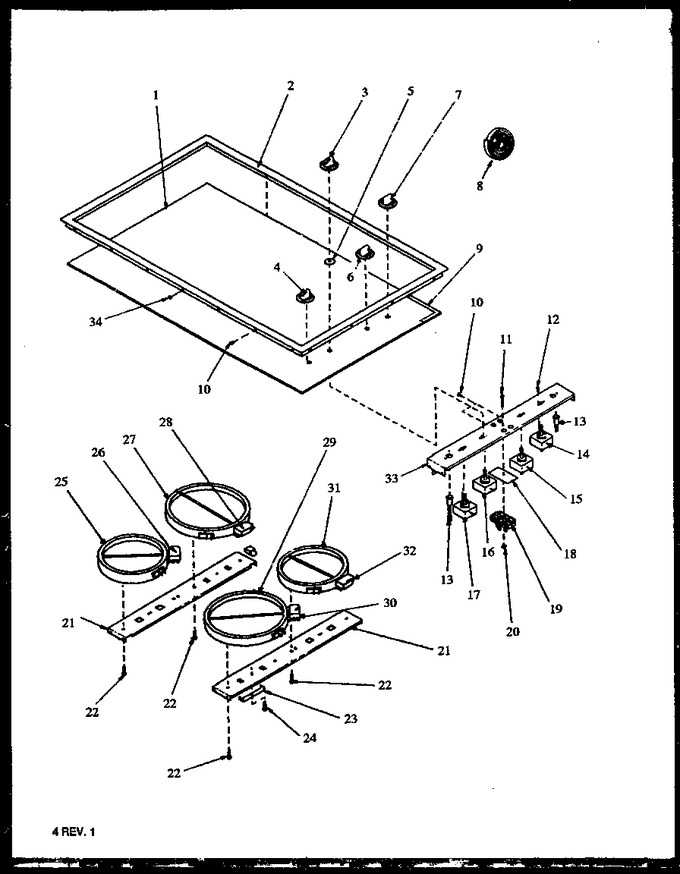

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307937W		Cooktop, Ceramic (wht)-28.390l		Appelez-nous	-
2	0307487		Frame - Trim		Appelez-nous	-
3	307620W		Knob, Control (wht)				$ 24.05
4	307624W		Knob, Control (wht)		Appelez-nous	-
5	Y0307427		Cover, Hole-electric				$ 7.75
6	307621W		Knob, Dual Element (wht)		Appelez-nous	-
7	307624W		Knob, Control (wht)		Appelez-nous	-
8	Y0307330		Tape, Vinyl Foam, Roll		Appelez-nous	-
9	M0275045		Tape Per Roll		Appelez-nous	-
10	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
11	M0202521		Screw		Appelez-nous	-
12	0307428		Screw, Machine		Appelez-nous	-
12	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0307443)			Immediately	$ 6.47
13	Y0307458		Light, Indicator		Appelez-nous	-
14	Y0307429		Control, Surface		Appelez-nous	-
15	0307320		Switch, Dual Infinite		Appelez-nous	-
16	W11122012		Control, Surface   (Replaces: Y0307455)				$ 227.43
17	Y0307429		Control, Surface		Appelez-nous	-
18	0307444		Insulation, Ind. Light		Appelez-nous	-
19	Y0307442		Light, Indicator		Appelez-nous	-
20	M0281002		Nut A		Appelez-nous	-
21	307425B		Bracket, Element		Appelez-nous	-
22	0306212		Screw, Shoulder		Appelez-nous	-
23	Y0306683		Spring, Element		Appelez-nous	-
24	Y0071914		Screw, Tt Ab No.8 X 3/8``		Appelez-nous	-
25	Y0306213		Heater, Radiant (1200w)		Appelez-nous	-
26	10061016		Limiter		Appelez-nous	-
27	W10823726		Element, Dual Ribbon 1000/2500   (Replaces: Y0306218)				$ 308.80
28	10061013		Limiter-temp, Large		Appelez-nous	-
29	Y0307433		Element, Haloring-1800 W		Appelez-nous	-
30	10061003		Limiter, Temp, Large		Appelez-nous	-
31	Y0307432		Element, Haloring-1500 W		Appelez-nous	-
32	10061005		Element, Haloring-1500 W		Appelez-nous	-
33	307423B		Bracket,cont Mtg.		Appelez-nous	-
34	M0272803		Lock Washer		Appelez-nous	-
NI	Y0307637		Cleaner, Cooktop(smooth)elco 1		Appelez-nous	-
