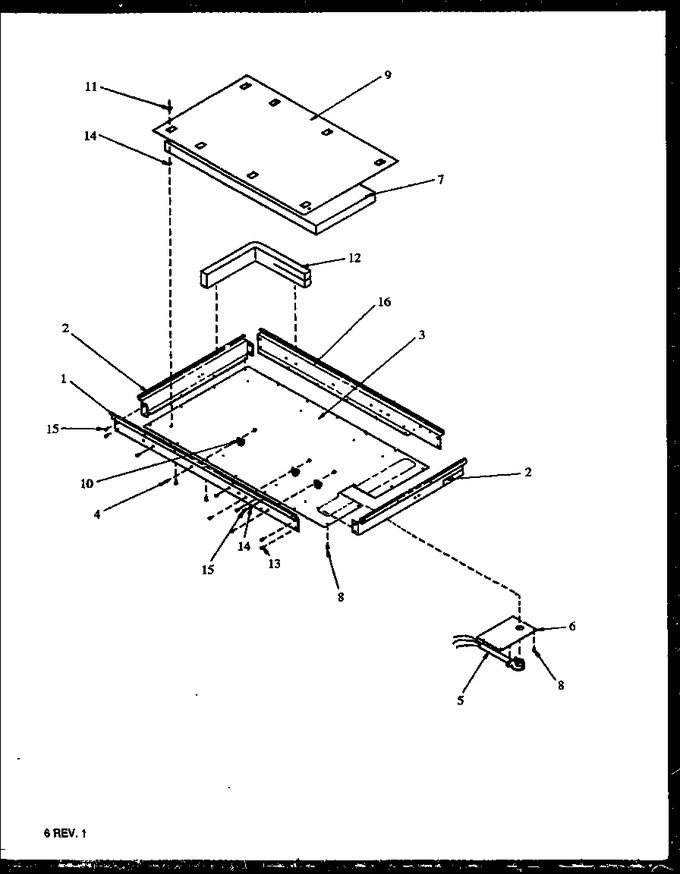

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307419B | Side, Heater Box |
|
- | |||||
| 2 | 307476B | End, Heater Box |
|
- | |||||
| 3 | 307460B | Panel, Access |
|
- | |||||
| 4 | M0218231 | Screw, T.c., Curtain |
|
- | |||||
| 5 | Y0308396 | Ass`y, Harness/conduit |
|
- | |||||
| 6 | Y0307451 | Plate, Conduit |
|
- | |||||
| 7 | Y0307480 | Insulation |
|
- | |||||
| 8 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 9 | 307489B | Baffle, Heater Box |
|
- | |||||
| 10 | Y0307456 | Clamp, Tube (1/2``) |
|
- | |||||
| 11 | Y0307447 | Pop Rivet K |
|
- | |||||
| 12 | 0307479 | Insulation |
|
- | |||||
| 13 | 12991101 | Screw, Sm (Replaces: M0210816) |
|
$ 11.55 | |||||
| 14 | M0272803 | Lock Washer |
|
- | |||||
| 15 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 16 | 307613B | Side, Heater Box |
|
- |
