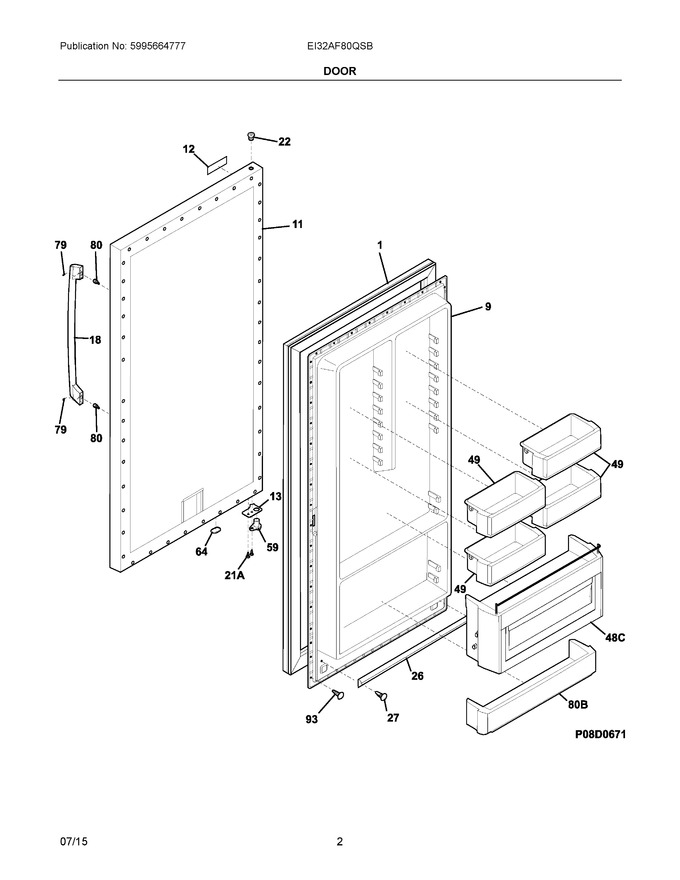

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
05 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304505782 | Gasket-door, Gray (Replaces: 216522370) |
|
Immediately | $ 235.60 | ||||
| 9 | 297280801 | Panel-inner Door, Frzr |
|
$ 222.01 | |||||
| 11 | 297329321 | Panel-outer Door, Stainless |
|
$ 962.38 | |||||
| 12 | 241873301 | Nameplate, Electrolux, Stainless |
|
$ 11.15 | |||||
| 13 | 297302801 | Door Stop, Lh |
|
$ 19.74 | |||||
| 18 | 241881309 | Handle-door, Stainless |
|
$ 256.62 | |||||
| 22 | 216970801 | Bearing, Hinge, Gray, Top |
|
$ 4.25 | |||||
| 26 | 216524201 | Gasket, Secondary |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip, Panel Mtg |
|
$ 16.63 | |||||
| 49 | 297291700 | Bin-door, 2-liter |
|
$ 97.65 | |||||
| 59 | 297302900 | Bearing, Door Stop |
|
$ 7.00 | |||||
| 64 | 216403700 | Plug-button, Hole Filler, Door Base (Replaces: 216403701) |
|
$ 58.12 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw, 8-18x.50 Ab, #10 |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw, Door Stop Mtg, Fh38-16x.750, P Twin |
|
$ 14.46 | |||||
| 48C | 297320700 | Bin-door, W/lid |
|
$ 620.34 | |||||
| 80B | 297292500 | Shelf, Condiment |
|
$ 63.42 | |||||
| NI | 297410600 | Screw, 8-18 X .500 |
|
Immediately | $ 3.55 | ||||
| NI | 240537301 | Nut-anchor, Door Hdl Screw |
|
$ 11.34 | |||||
| NI | 297355300 | Label, Quick Start |
|
- | |||||
| NI | 297048000 | Screw, Anchor, #8, White |
|
$ 12.05 | |||||
| NIA | 5304406520 | Clip, Panel Mtg Kit, (40) |
|
$ 125.83 | |||||
| NIA | 297175300 | Wrench, Allen |
|
$ 15.49 |
