SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

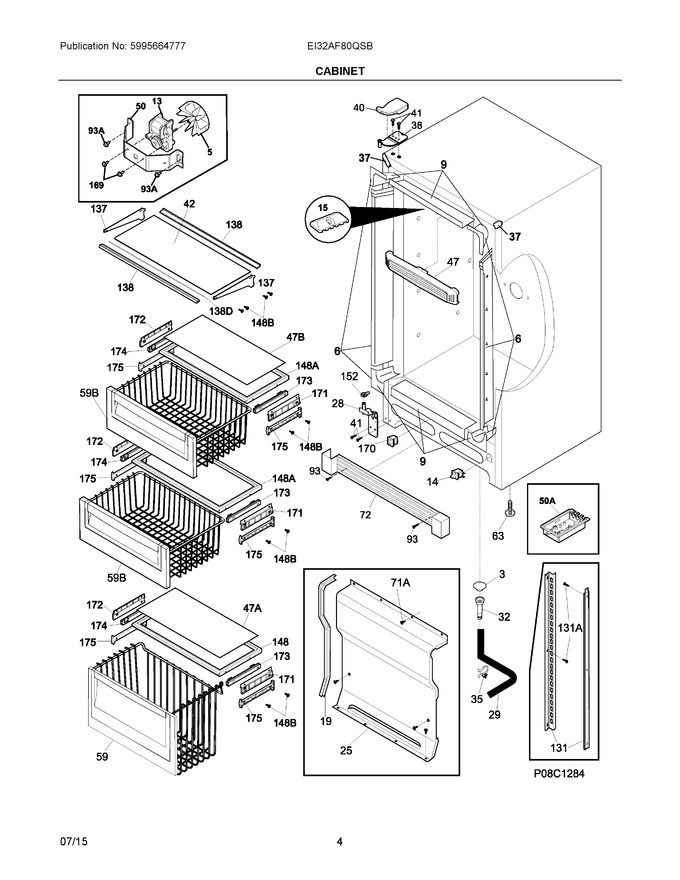

03 - Cabinet


04 - System


05 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	5304504914		Motor, Blower   (Replaces: 297435200)			Immediately	$ 142.27
14	216822900		Switch, Light/lamp, Ramp   (Replaces: 216822901)			Immediately	$ 70.16
15	241891105		Light-led				$ 97.39
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099255		Cover-evaporator				$ 86.36
28	5303018741		Hinge-lower, Lh W/bearing   (Replaces: 297302511)			Immediately	$ 42.12
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273903		Trim-cabinet Corner, Silver Mist, (2)		Appelez-nous	-
38	297303901		Hinge-upper, Lh				$ 23.49
40	297304001		Cover-hinge, Gray, Lh				$ 73.00
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297296600		Shelf-glass				$ 115.03
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 25.31
48	297436400		Bracket-fan Motor				$ 11.34
50	216394050		Bracket, Fan Motor Mount				$ 22.75
59	297304400		Basket, Assy, Tall				$ 572.13
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	5304510562		Grille/kickplate, 32   (Replaces: 297332100)				$ 220.13
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
131	297327200		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
138	297296300		Trim-shelf				$ 76.55
148	297288802		Frame, Basket-cover, Tall				$ 219.45
152	297302700		Bearing-hinge		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280403		Valve, Breather				$ 21.69
171	297092700		Bracket, Crisper Cover, Rh				$ 55.36
172	297092701		Bracket, Crisper Cover, Lh				$ 56.88
173	5304517648		Slide-basket, Rh, W/clips   (Replaces: 297291200)			Immediately	$ 72.30
174	5304517649		Slide-basket, Lh, W/clips   (Replaces: 297291201)				$ 78.08
175	297099500		Support, Crisper			Immediately	$ 47.03
131A	297146821		Screw, Th, 8-18x.470 Ab Qx, White, (6)				$ 4.94
138D	297350900		Gasket, Shelf				$ 18.08
148A	297288803		Frame, Basket, Mid-level				$ 230.35
148B	297142600		Screw, Blunt, 8-32 X 5/8				$ 13.01
47A	297291300		Glass, Crisper Cover			Immediately	$ 124.03
47B	297291301		Glass, Crisper Cover			Immediately	$ 131.83
50A	241891608		Board-led Power				$ 272.06
59B	297297500		Basket, Assy-mid Level				$ 223.44
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	297333610		Trim Kit, Built In, Dual, Complete, Trimkitss2		Appelez-nous	-
NI	297305500		Clip, Crisper				$ 13.42
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	297436200		Grommet				$ 7.79
NI	5304496619		Energy Guide		Appelez-nous	-
NI	297333510		Trim Kit, Built In, Single, Complete, Trimkitss1		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIAA	241852501		Clip, Wiring Harness				$ 15.60
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
