01 - Cover Sheet

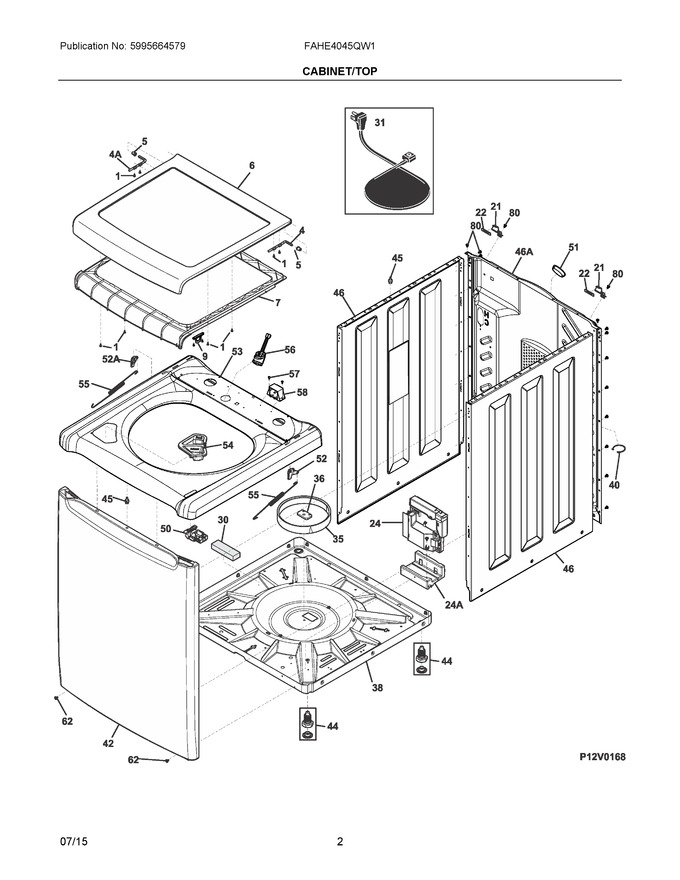

02 - Cabinet/top


03 - Motor/tub


04 - Control/panel


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134203900		Screw, Pan Hd Phillips, 6-32 X 0.337, Dog Point				$ 10.85
4	5304500661		Hinge Bar, Rh				$ 24.68
5	137456300		Grommet, Hinge, Fsw				$ 49.30
6	137330210		Panel, Lid Glass, White				$ 217.51
7	137302210		Asmy, Frame & Glass				$ 218.03
9	137512000		Striker, Lid, Tlw				$ 17.96
21	137278500		Bracket, Hinge		Appelez-nous	-
22	137331300		Spacer, Hinger				$ 22.10
24	137469130		Board, Main, Mtr Ctrl				$ 384.30
30	131663500		Cushion, Drain Hose, Base				$ 23.00
31	5304505407		Power Cord, Electric Svce   (Replaces: 134501000)				$ 88.20
35	5308002385		Snubber Ring				$ 54.86
36	3204380		Shipping Block				$ 12.29
38	137493201		Base, 27, Fsw, Washed				$ 222.34
40	5303309503		Clip, Drain Hose, Back Sheet				$ 7.09
42	137363110		Panel, Front, Fsw, White				$ 218.24
44	134548800		Leveling Leg, Screw, Plastic			Immediately	$ 30.20
45	137362600		Pin, Panel Locator				$ 35.44
46	137272610		Panel, Washer Side, White, Lh/rh				$ 213.10
50	137353300		Lock, Lid, External Switch			Immediately	$ 110.66
51	131453000		Bushing, Snap-in				$ 10.63
52	137468601		Hinge, Stop W/lube, Right				$ 31.19
53	137510010		Panel, Top, White				$ 243.13
54	137271648		Bezel, Dispenser-bl/sf				$ 232.63
55	137534000		Spring, Lid Assist				$ 31.76
56	137533000		Light, Tub W/housing				$ 79.38
57	134935200		Screw, #6 Pan Head, #8-32 X .25, Quadrex				$ 13.46
58	134554300		Transformer		Appelez-nous	-
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
24A	137469200		Base, Motor Control				$ 65.10
46A	137273201		Panel, Washer Back, Washed		Appelez-nous	-
4A	5304500662		Hinge Bar, Lh				$ 19.09
52A	137468501		Hinge, Stop, W/lub, Left				$ 31.56
NI	5304500658		Screw, Knurled Set, 10-32		Appelez-nous	-
NIA	137368400		Screw, #8-18 X .44		Appelez-nous	-
NIA	134261300		Clip, Drain Hose, Push-mount				$ 12.05
NIA	5303209428		Bushing, Strain Relief				$ 17.01
NIA	3204368		Screw, Lid Strike Mtg, 6-20b X 0.375				$ 13.01
NIA	137547300		Screw, #6-20 X 3/8, (6)		Appelez-nous	-
NIAA	131205500		Screw, Cab Body, 1/4-14 X 0.625, Side-to-base				$ 13.46
NIAA	137034600		Screw, #10-16x0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
