SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/top


03 - Motor/tub


04 - Control/panel


05 - Wiring Diagram

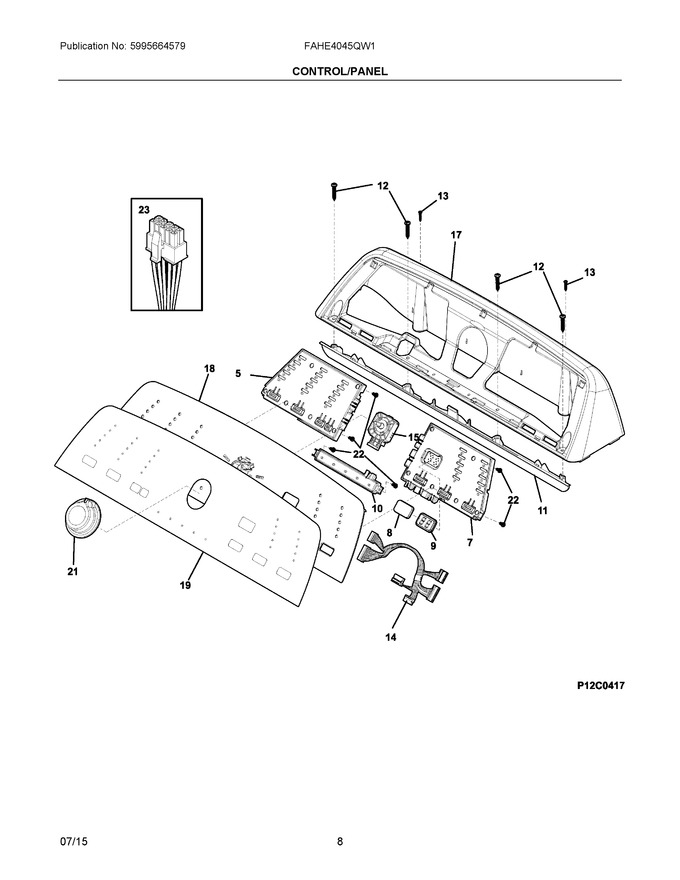

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	137363800		Board, Ui Lt Hsg Cover				$ 171.52
7	5304500657		Board, Ui Rt Hsg Cover				$ 231.76
8	137347700		Window, Digit Display				$ 55.18
9	137367700		Body, Digit Display		Appelez-nous	-
10	137363900		Board, Central Hsg Cvr				$ 229.16
11	137351100		Spacer, Front Control		Appelez-nous	-
12	137362400		Scr-10-16x1.25", Quad Pan Hd Ab				$ 8.66
13	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
14	137203500		Harness, Upper, Hetlw				$ 111.83
15	137493700		Switch, Pts Cycle 14 Ps				$ 125.73
17	137054110		Console, Shell J, White		Appelez-nous	-
18	137490000		Insert, 7 Button Consol		Appelez-nous	-
19	137517971		Overlay, Front		Appelez-nous	-
21	137489600		Knob, Cycle Selector				$ 60.38
22	3205253		Screw, Pan Head, 6-20b X 0.375		Appelez-nous	-
23	137435500		Harness, Main Washer				$ 189.86
NI	5304502819		Label, Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
