SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

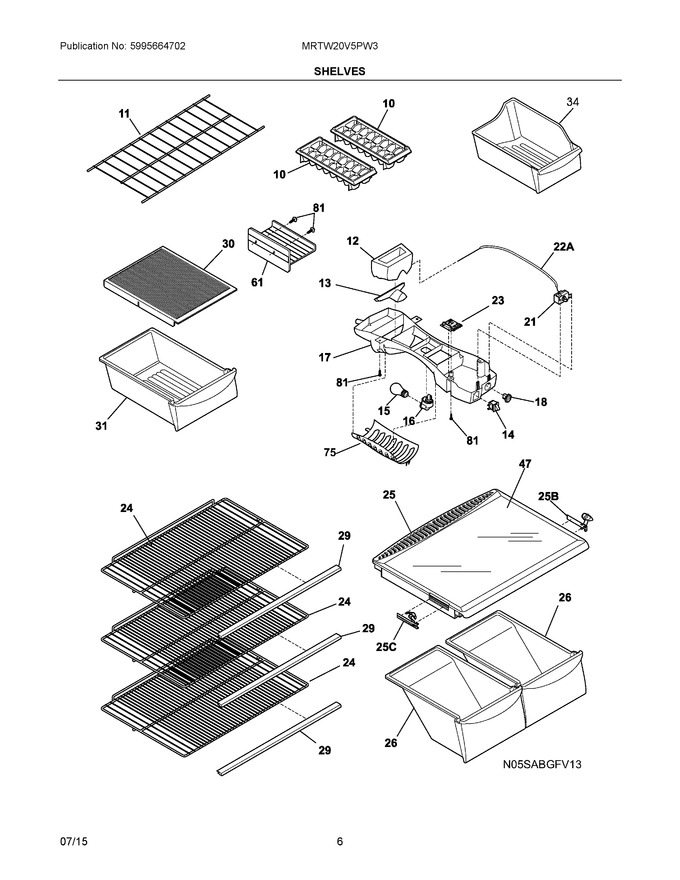

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray, Ice Cube, Plastic			Immediately	$ 6.07
11	240358008		Shelf, Freezer				$ 91.80
12	241542001		Diffuser, Air, Top			Immediately	$ 74.42
13	240362601		Diffuser, Air, Bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	218814402		Light Bulb				$ 55.36
16	241559801		Socket-light/lamp   (Replaces: 240433702)				$ 72.68
17	5304503170		Control Box				$ 25.94
18	240360801		Knob, Temp Control				$ 43.95
21	5304458064		Control-temperature		Appelez-nous	-
23	242011004		Control-defrost, Adaptive Timer, 220/240 V, Pc Board		Appelez-nous	-
24	240360908		Shelf, Sliding, Wire			Immediately	$ 94.98
25	240364787		Cover-crisper Pan			Immediately	$ 120.98
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
30	240361802		Cover, Meat Pan Hanger, Drop Through				$ 34.70
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 135.77
34	3018945		Container, Ice		Appelez-nous	-
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
61	215781501		Shelf, Ice Tray Mount, Wire				$ 136.19
75	240412701		Shield, Light				$ 16.30
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White   (Replaces: 240468201)				$ 9.10
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
NIA	241705801		Spacer-shelf				$ 7.09

    View Diagram in Separate Window       Print Part List
