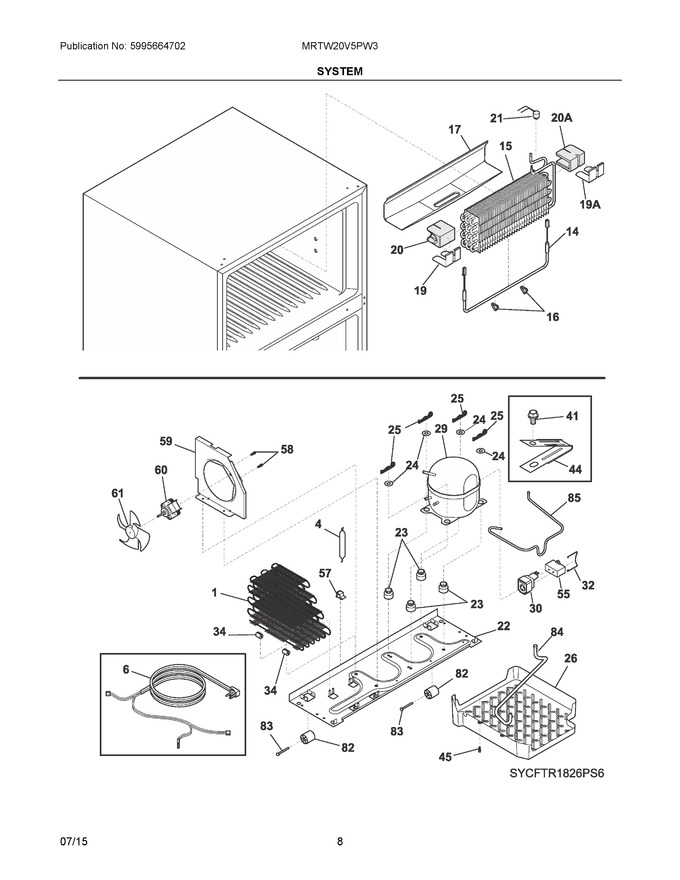

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785404		Condenser   (Replaces: 241873404)				$ 169.39
4	5303305677		Dryer-filter, W/process Tube   (Replaces: 242190201)			Immediately	$ 31.67
6	241723307		Cord-service, Britain		Appelez-nous	-
14	240356224		Defrost Heater, 220 V		Appelez-nous	-
15	5303918491		Evaporator Kit				$ 289.40
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 11.22
21	5303918202		Thermostat-defrost, Kit			Immediately	$ 20.21
22	241665606		Base-compressor, W/rollers				$ 194.14
23	218513300		Grommet-compr Mtg, (4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241920605		Pan-defrost				$ 53.76
29	240550927		Compressor		Appelez-nous	-
30	241707714		Starter-ptc				$ 59.54
32	241809001		Clamp, Elec Cont Mtg, Compressor		Appelez-nous	-
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
45	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
55	218909908		Capacitor, Run				$ 177.19
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw, Hex Washer Head, 8-32 X 0.375   (Replaces: 218897004)			Immediately	$ 13.46
59	5303918774		Shroud, Cond Fan Motor   (Replaces: 241935602)			Immediately	$ 186.30
60	242018402		Motor-condenser Fan, 220-240v		Appelez-nous	-
61	240524102		Fan Blade, Condenser Fan			Immediately	$ 39.43
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.09
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
84	240359601		Tube-drain, Lower				$ 79.38
85	241856901		Tube-connector, Suction				$ 78.11
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 11.48
29A	5303918413		Compressor, W/electricals		Appelez-nous	-
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
NIA	240346701		Tape-foam Seal, Shroud				$ 29.77
NIA	241735901		Bracket Assembly, Receptacle, Service Cord		Appelez-nous	-
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIB	240359403		Screw-fan Shroud, (2)				$ 3.79
NIB	241832601		Harness-wiring, Freezer		Appelez-nous	-
NIC	242020001		Harness, Wiring, Machine Compt		Appelez-nous	-
