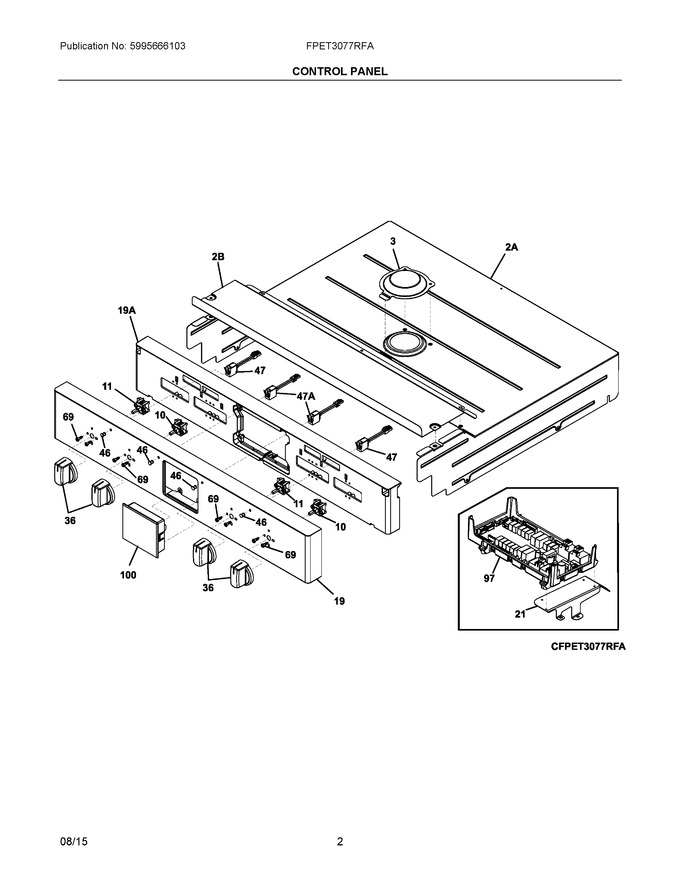

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	808963801		Shield, Sensor, Hall Effect				$ 22.75
10	808843102		Potentiometer, Oven Temp				$ 148.13
11	5304493649		Potentiometer, Oven Mode   (Replaces: 808843101)			Immediately	$ 71.59
19	5304500603		Control Panel, Assembly, Stainless, Outer				$ 300.33
21	808931301		Bracket, Ovc Support		Appelez-nous	-
36	5304500593		Knob, Oven Control, Stainless				$ 142.57
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 27.30
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
97	316475806		Board Assembly, Ovc2 Pcba, W/bracket   (Replaces: 316475802)			Immediately	$ 641.99
100	808751527		Control Assembly, Complete, Hmi   (Replaces: 808751509)			Immediately	$ 307.14
19A	5304500594		Control Panel, Frame				$ 283.28
2A	808651402		Shield, Wire, Top		Appelez-nous	-
2B	5304520853		Cover, Control Access   (Replaces: 808651501)				$ 57.91
47A	316022510		Light/lamp, Indicator, Blue, Preheat				$ 31.10
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304500624		Harness, Wiring, Hall Effect, Lower Oven				$ 75.83
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304517676		Harness, Wiring, Potentiometers, Dual Oven   (Replaces: 5304500639)				$ 76.59
NI	5304517673		Harness, Communication, Ovc1 To Ovc2   (Replaces: 5304500616)				$ 20.48
NI	5304514832		Harness, Wiring, Hall Effect, Upper Oven   (Replaces: 5304500623)				$ 51.57
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
