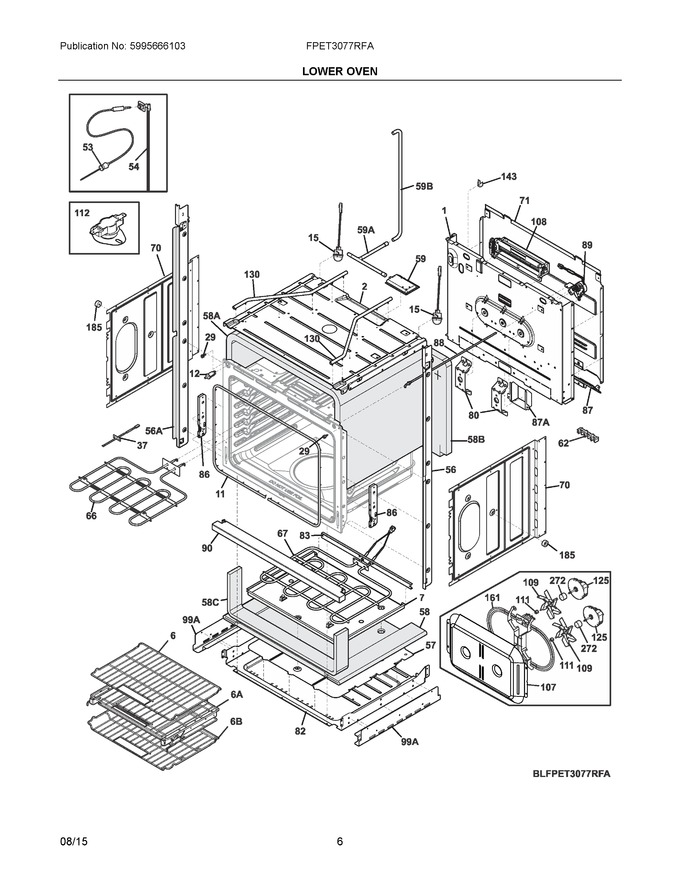

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139035302		Panel, Main Back		Appelez-nous	-
2	808651301		Shield, Insulation, Top		Appelez-nous	-
6	139011600		Rack, Oven, W/handle				$ 124.74
7	5304520858		Box, Bake Element   (Replaces: 808816302)				$ 127.40
11	139036700		Seal, Oven Door			Immediately	$ 109.96
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 20.56
29	316517600		Spacer, Oven Door				$ 12.05
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
53	5304504202		Probe, Meat Temp, Red   (Replaces: 318601303)			Immediately	$ 106.19
54	139017203		Receptacle Assy, Meat Probe			Immediately	$ 153.09
56	5304500600		Trim, Side (black) (lh)				$ 97.10
57	808109502		Shield, Air Wash, Lower		Appelez-nous	-
58	808816501		Insulation, Bottom		Appelez-nous	-
59	808931403		Vent Box Assy., W/catalyst		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304521861		Element, Broil, 8 Pass, 4000w   (Replaces: 139000900)			Immediately	$ 90.25
67	5304501015		Element, Hidden Bake, 2200w				$ 246.65
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	808650301		Shield, Rear Wall		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan   (Replaces: 139021100)				$ 14.89
82	808108901		Shield, Insulation, Lower		Appelez-nous	-
83	808816401		Shield, Bake Tray, Rear		Appelez-nous	-
86	139026900		Receptacle, Hinge, Dual Spring				$ 32.61
87	808652001		Bracket, Cable Box		Appelez-nous	-
88	808721601		Rod, Door Latch				$ 53.85
89	808721802		Motor Assy., Door Latch				$ 77.70
90	5304500608		Trim, Vent, Stainless, Lower		Appelez-nous	-
107	5304500627		Cover, Dual Fan, Black, Convection				$ 139.80
108	808963704		Blower Assy., Cooling, Lower Oven   (Replaces: 808963701)			Immediately	$ 184.28
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
112	5304494446		Switch, Thermal Cutoff, 145c				$ 43.24
125	139008504		Motor, Convection Fan, 2400 Rpm, 2 Speed   (Replaces: 139008503)			Immediately	$ 170.57
130	808931801		Seal, Silicone, (2)		Appelez-nous	-
143	318172904		Support, Wire		Appelez-nous	-
161	5304500622		Element, Convection, Dual, 3400w				$ 163.05
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
272	139021700		Tube, Convection Fan				$ 17.72
56A	5304500599		Trim, Side (black) (rh)				$ 98.51
58A	808905501		Insulation, Oven Wrapper		Appelez-nous	-
58B	808905101		Insulation, Oven Back		Appelez-nous	-
58C	807887503		Insulation, Bake Element, Front		Appelez-nous	-
59A	808931501		Tube, Extension, Catalyst		Appelez-nous	-
59B	808931601		Tube, Connector, Catalyst		Appelez-nous	-
6A	139013308		Rack Assembly, Gliding, W/handle				$ 249.59
6B	139012400		Rack, Oven, Offset, W/handle				$ 181.34
87A	808652101		Shield, Terminals, Bake Element		Appelez-nous	-
99A	808108601		Support, Floor, (2)				$ 58.12
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
NI	5304518440		Harness, Wiring, Main   (Replaces: 5304503259)				$ 298.04
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	139022101		Insualtion, Noise Dampening		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304500625		Harness, Wiring, Door Switch		Appelez-nous	-
NIA	318167300		Clip, Rod				$ 2.84
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIAA	5304500643		Bracket, Catalyst Tube		Appelez-nous	-
NIB	5303311164		Spring				$ 18.95
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
