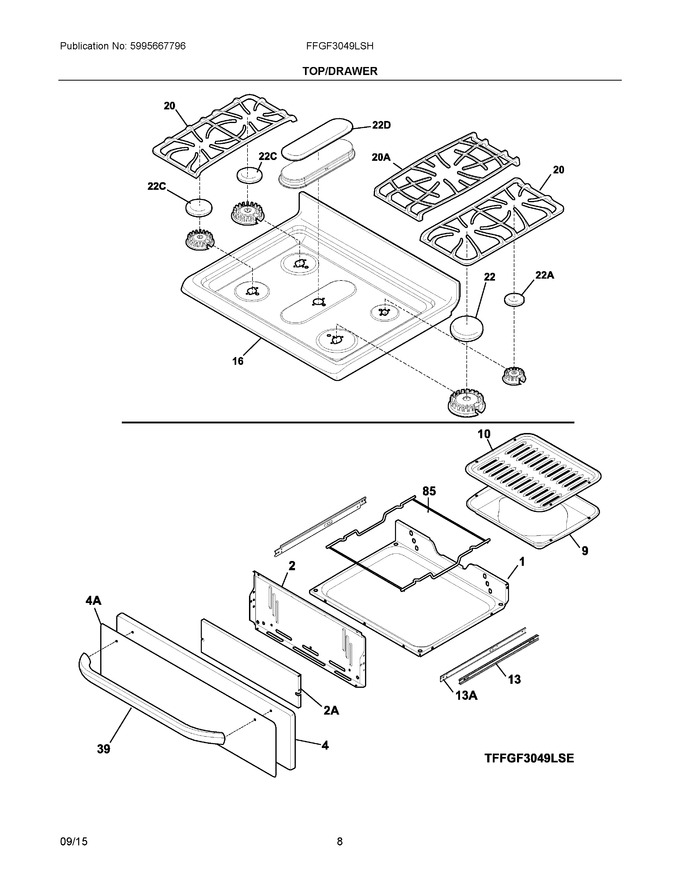

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Low Broil				$ 232.57
2	316236401		Liner, Low Broil				$ 119.96
4	316581603		Drawer Panel, Assy, Stainless, W/overlay		Appelez-nous	-
9	316081902		Pan, Broiler, Slate Blue				$ 83.42
10	316082002		Insert, Broiler Pan, Slate Blue				$ 81.14
13	316111503		Glide, Low Broil, Outer/rh & Lh, (2)		Appelez-nous	-
16	316469645		Maintop Panel, Black		Appelez-nous	-
20	316499806		Grate, Black, (2)   (Replaces: 316499502)				$ 354.16
22	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
39	316558201		Handle, Door, Stainless				$ 174.23
85	316115600		Rack, Low Broil				$ 105.47
13A	316534200		Glide-low Broil, Inner				$ 42.75
20A	316499806		Grate, Center, Black   (Replaces: 316551802)				$ 354.16
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
2A	316541500		Shield, Broiler				$ 61.37
4A	316444800		Overlay, Drawer Panel, Stainless		Appelez-nous	-
NI	316021120		Screw, Shoulder Head, 8-18 X 5/8, (2), Square Drive				$ 13.28
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
