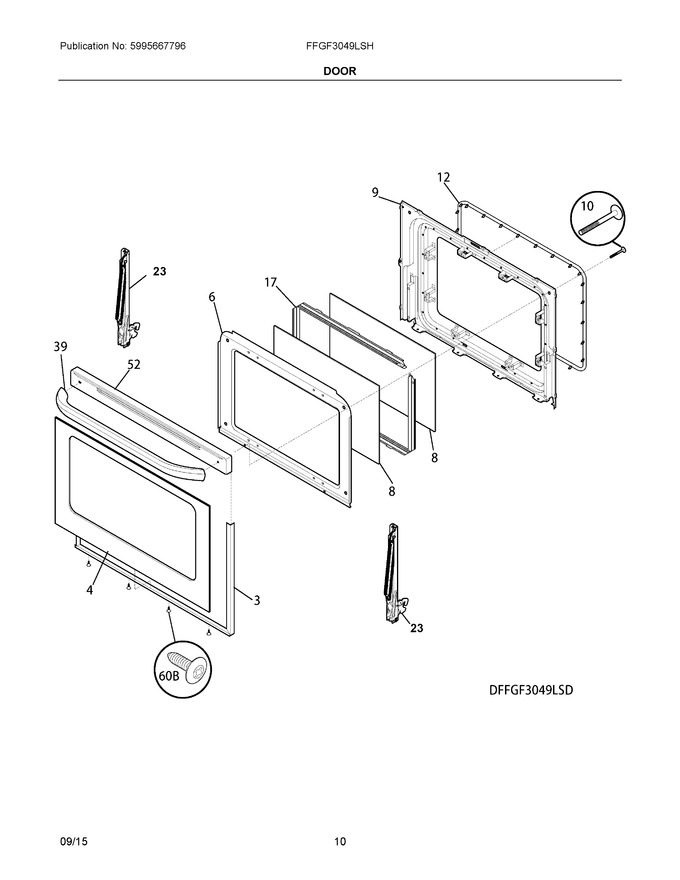

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935398 | Trim Kit-door, 3 Sided, Black, W/tape And Foil |
|
$ 54.86 | |||||
| 4 | 316453036 | Glass Assembly, Oven Door, W/tape, Ss, Outer, W/ss Overlay |
|
$ 390.71 | |||||
| 6 | 316222711 | Shield, Wool, Black, Oven Door |
|
$ 47.90 | |||||
| 8 | 5304503232 | Glass, Oven Door, Inner |
|
$ 116.95 | |||||
| 9 | 316230635 | Liner, Oven Door |
|
$ 135.37 | |||||
| 10 | 316433303 | Screw, Handle Mtg., 10-24 X 1.75", (2) (Replaces: 316439500) |
|
Immediately | $ 31.17 | ||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 152.43 | ||||
| 17 | 316117701 | Spacer, Door Glass, (2) |
|
$ 53.66 | |||||
| 23 | 316575924 | Hinge, Oven Door |
|
$ 64.49 | |||||
| 39 | 316558201 | Handle, Door, Stainless |
|
$ 174.23 | |||||
| 52 | 316491201 | Cap, Door Trim, Black |
|
$ 99.94 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.56 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
